Crouse-Hinds Crouse-Hinds EDSC2229


Description

Industry Description

EDS/EFD ENCLOSURES GENERAL USE SNAP SWITCH FRONT OPERATED

Modified Industry Description

SWITCH

AD Description

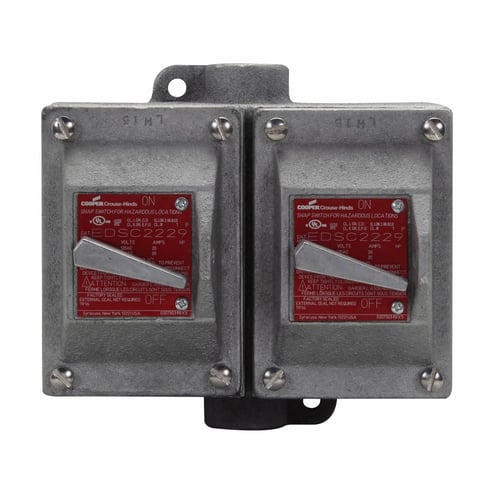

Crouse-Hinds FlexStation™ EDSC2229 2-Gang Factory Sealed Through Feed Snap Switch Control Station, 120/277 VAC, 20 A, NEMA 3/7B/7C/7D/9E/9F/9G NEMA Rating

Specifications

Action
SP
Amperage Rating
20
Application
Chemical Plants, Oil and Gas Refineries, Paint and Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain Processin
Class
C
Country of Origin
MX
Enclosure
Class I Div 1 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G
Length1
5.0600
Material
Feraloy
Number_Of_Poles
1
Size
5-3/32 In Length X 7-3/16 In Width X 3-1/16 In Height
Special Features

  • 3/4 in hub
  • Are used with general purpose snap and pushbutton type switches
  • Close tolerances in machining of wide, mating flanges and journalled shafts and bearings for front button operation, produces flame tightness of enclosure joints
  • Close tolerances in machining of wide, mating flanges and journalled shafts and bearings for front button operation, produces flametightness of enclosure joints
  • Dust-ignitionproof, rain tight wet locations
  • Dust-ignitionproof, raintight
  • Eliminate external seals
  • For manual starting of small AC/DC motors
  • Improve safety
  • In conjunction with magnetic starters or contactors for remote control of motors
  • Large machine screws for fastening covers to bodies
  • Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
  • Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
  • Lockout provisions on front operated pushbutton (marked stop and Off) and selector switch covers
  • Lower installation costs
  • Mounting lugs and taper tapped hubs with integral bushings
  • On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
  • on enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flametightness
  • Reduce installation problems
  • Standard neoprene covers for front operated pushbuttons, prevents accumulation of dirt and entrance of water around operating shafts
  • To prevent arcing of enclosed device from causing ignition of a hazardous atmosphere external to the enclosure
  • To provide manual starting and stopping and motor running protection (with heater)
Standard
UL 1203, CSA C22.2
Sub_Brand
Eaton Crouse-Hinds
Type
Snap Switch, Through Feed, Front Operated, Factory Sealed
Voltage Rating
120/277
