3M 3M 5411R-CIR-1/0


Description

Industry Description

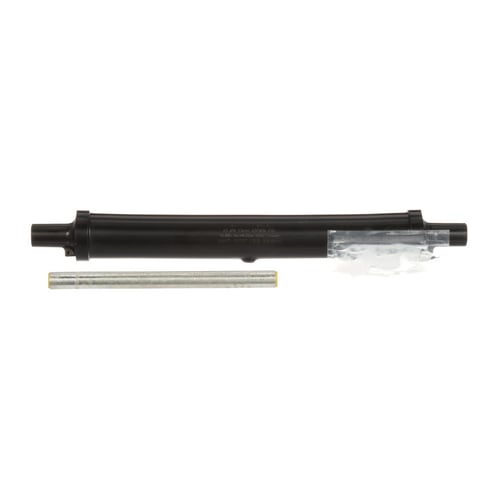

3M™ 5411R Series Molded Rubber QS II Splice Kit is a 15kV 1 piece inline splice perfect to repair damaged cables. It is suitable to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables with copper or aluminum conductors. Its elongated design ensures the easy removal of damaged cables up to 6 inches.

Modified Industry Description

INLINE SPLICE KIT

AD Description

3M™ 054007-09355 5411R Splice Kit, 15 kVAC, 0.61 in Cable, 1/0 AWG Conductor, 15.7 in L Splice, EPDM Rubber

Vendor Description

3M™ 5411R Series Molded Rubber QS-II Splice Kit is a 15kV 1-piece inline splice perfect to repair damaged cables. It is suitable to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables with copper or aluminum conductors. Its elongated design ensures the easy removal of damaged cables up to 6 inches.

Specifications

Brand Name
3M
Cable_Type
Concentric Neutral/Jacketed Concentric Neutral
Color
Black
Conductor Size
1/0
Country of Origin
US
Functions
CIR-1/0
Label_Description
3M(TM) QS-II MOLDED RUBBER SPLICE 5411R-CIR-1/0, CABLE INSULATION O.D. 0.637-0.900 IN, 1 PER CASE
Material
EPDM Rubber
Package_Quantity
1
Special Features

  • 1-piece in-line splice is perfect to repair damaged JCN or CN cables up to 6 in
  • 1/0 stranded conductor size
  • 1/case
  • 1177 V/mil at 25 mil gap, 518 V/mil at 100 mil gap dielectric strength
  • 570% elongation
  • 900 psi tensile strength
  • Excellent electrical stress distribution
  • Factory tested to offer reliability
  • Molded from specially formulated, peroxide cured EPDM rubbers
Sub_Brand
3M
Temperature_Rating
90 to 130
Type
Inline Repair
Voltage Rating
15
