3M 3M MV14BCK


Description

Industry Description

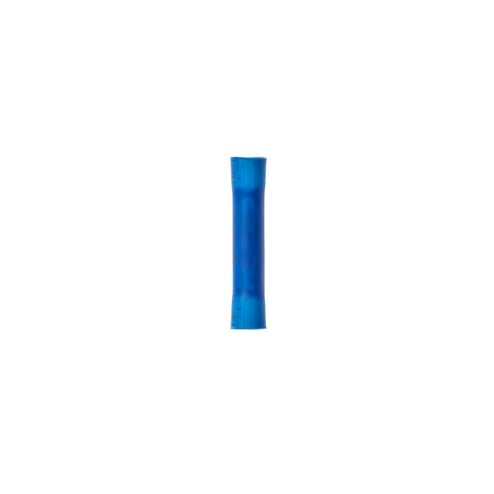

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

16-14 BUTT CONN BULK

AD Description

Scotchlok™ 054007-01817 Standard Butt Connector, 16 to 14 AWG Conductor, 1.02 in L, Seamless Barrel, Copper, Blue

Vendor Description

Secure your wires with this 3M™ Scotchlok™ Butt Connector. Its built-in wire stop ensures wires are positioned correctly for a smooth installation. This connector also has chamfered barrel ends for quick, easy wire insertion so you spend as little time as possible on this task. It’s color-coded blue to virtually eliminate confusion during and after installation, and its vinyl-insulated, seamless barrel provides a great fit for wires. Revitalizes pre-stripped stranded wires by providing an electrical connection via this butt connector, which is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Specifications

Brand Name
3M
Color
Blue
Conductor Size
16 to 14 AWG
Country of Origin
US
Label_Description
VINYL INSULATED SEAMLESS BUTT CONNECTOR
Material
Copper
Operating_Voltage
1000 per bulk box
Package_Quantity
1000
Special Features

  • 0.031 in thickness
  • Crimp connection, vinyl insulation
  • Must be crimped at both ends
  • Uses chamfered barrel ends to provide fast, easy wire insertion from both ends and a built-in wire stop for correct positioning
Standard
UL and CSA
Sub_Brand
3M
Terminal_Size
16 - 14 AWG
Type
Standard
Voltage Rating
600 VAC
