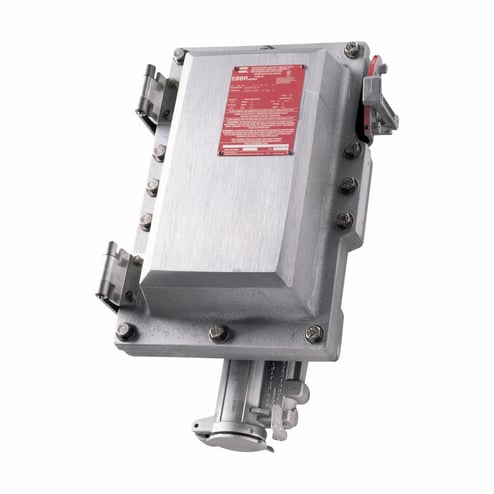

Crouse-Hinds Crouse-Hinds EBBRA604-WT70-3


Description

Industry Description

60 AMP 3 WIRE 4 POLE ARKTITE INTERLOCK RECEPTACLE CH 70 AMP BREAKER

Modified Industry Description

60A ARKTITE INTERLOCK RECEPTACLE

Specifications

Amperage Rating
70
Application
Ind Facilities & Factories - Facility: Power Distribution and Control
Brand Name
Crouse-Hinds
Country of Origin
DO
Material
Copper Free Aluminum
Number_Of_Wires
3
Poles
4
Special Features

  • A spring door receptacle, located at the bottom of the unit, is mechanically interlocked with the circuit breaker operating mechanism for safe and dependable operation
  • Accepts compatible Arktite® plug of same rating and configuration
  • Component operating handles located through the right side wall of the body permits visual confirmation of correct component assembly and operation
  • Copper free aluminum hinges allow the cover to swing well out of the way
  • Mechanical interlock mechanism for dead front construction
  • Minimum enclosure-to-enclosure spacing with little interference between the opened cover and an adjacent enclosure
  • Operating handles can be padlocked in either "on" or "off" positions
  • Plug and receptacle contacts cannot be made or broken under load
  • Receptacles are mechanically interlocked with circuit breakers to provide disconnect means, short circuit protection and thermal time delay overload protection
  • Rugged, corrosion resistant, cast copper free aluminum construction
  • Semi-clamshell enclosure design, with an external machined flat joint flame path between body and cover makes interior components easily accessible
  • Stainless steel, quick release, captive, hex head cover bolts, stainless steel springs provide clear indication cover bolts are fully retracted from body
  • Total compliance to the wiring and room requirements of the NEC
  • Versatile, internal operating mechanisms allow for field adjustment to accommodate popular manufacturers' breakers
Sub_Brand
Eaton Crouse-Hinds
Type
Receptalce And Circuit Breaker
Voltage Rating
480
