3M 3M 8562


Description

Industry Description

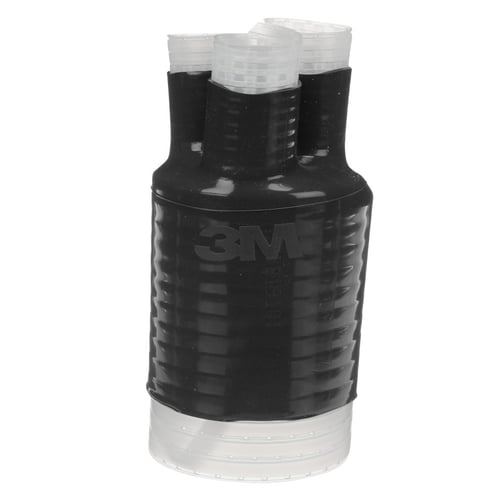

3M™ 8560 3 Way Cold Shrink Cable Breakout Boot is made of a dark gray silicone rubber and protects the phase leg breakout of 3 way medium voltage power cables. It shields power cables from moisture, contamination, corrosion, ozone, UV radiation, physical contact and other hazards in associated environments. It allows quick installation while accommodating a wide range of cables.

Modified Industry Description

Breakout Boot

AD Description

3M™ 054007-43144 8560 Cold Shrink Highly Flexible Cable Breakout Boot, 2.67 in ID Expanded, 1.46 in ID Recovered, Silicon Rubber

Vendor Description

3M™ 8560 3-Way Cold Shrink Cable Breakout Boot features an open end and is factory-expanded and mounted on a removable plastic core. When the supporting cores inside the boot are removed, this pre-stretched boot shrinks to the pre-determined diameter, creating an environmental enclosure for individual cable phase legs and the overall cable jacket. It can be used in conjunction with cold shrink silicone rubber termination assemblies and RJS Series rejacketing sleeves for shielded power cable terminating applications. It's compatible with cold shrink silicone rubber termination products and RJS Series phase rejacketing sleeves.

Specifications

Brand Name
3M
Color
Dark Gray
Country of Origin
CN
Label_Description
3M(TM) COLD SHRINK 3/C CABLE BREAKOUT BOOT 8562, 1 PER CASE
Material
Silicon Rubber
NEMA_Configuration
black
Package_Quantity
1
Special Features

  • Designed to protect the phase leg breakout of 3/C medium voltage power cable from exposure to moisture, contamination, corrosion, ozone, ultraviolet radiation, physical contact and other hazards associated with 3/C termination operating environments
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Features 149 psi tear resistance, 1370 psi ultimate tensile strength, 780% ultimate elongation, 180 deg C Class H temperature rating, 0.61 to 0.95 in Dia cable phase shield, 1.46 to 2.67 in Dia cable outer jacket
  • Features good solvent resistance for industry-approved cable cleaners
  • Highly flexible accommodates all power cable supplier bend radius recommendations
  • It is an open ended molded rubber sealing assembly that has been factory expanded and mounted on a removable plastic core
  • No torches, heat and also specific user skills or craftsmanship required
  • One-piece versatile design allows quick installation and accommodates a wide range of cable sizes
  • Provides excellent resistance to ozone, ultra-violet radiation, excellent thermal stability and high dry and wet insulation resistance
  • Seals tight retains resiliency and pressure even after prolonged years of aging and exposure
  • Simple hand application, no need for special installation tools
  • Used in conjunction with 3M™ cold shrink silicone rubber termination assemblies and 3M™ RJS series rejacketing sleeves for 3/C shielded power cable terminating applications
Sub_Brand
3M
Type
Cold Shrink Highly Flexible
