3M 3M 5332

Industry Description

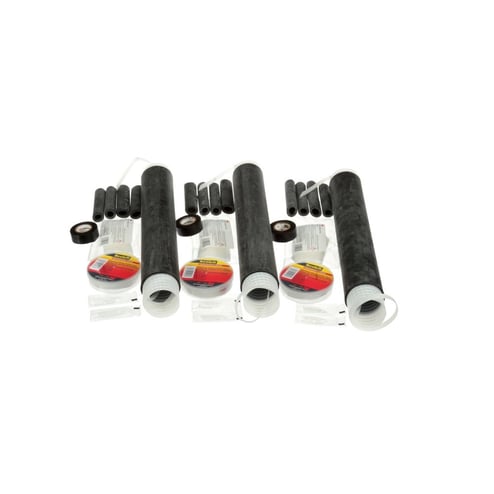

3M™ Motor Lead Inline Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables. 3M™ Motor Lead Splicing Kits 5331-5334 can accommodate inline connections, 5/8 kV shielded and non-shielded feeders. The splice’s main component, the slip-on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal on the inline kits.These kits are designed to be used with copper compression, one- or two-hole lugs. After being crimped onto the cables, the lugs are bolted together in an inline configuration, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ 30000 Series copper compression lugs, or other UL listed copper lugs, can be used. In addition, 3M™ Motor Lead Splicing Kits 5331-5334 require vinyl tape which can also be purchased separately.For inline splice kits: The longitudinal space required for assembly will be approximately 2 (splice cover length), to allow space for the splice while the connection is being made.Kit contents include:• (3) Cold Shrink tubes• (12) Adapters• (3) Rolls Scotch® Stress Control Tape 2220• (3) Bags of solvent cleaning cloths• (6) Tubes of silicone grease• (3) Rolls Scotch® Linerless Rubber Splicing Tape 130C• (3) Instruction sheets

Modified Industry Description

3M MOTOR LEAD TERM KIT

AD Description

3M™ 5332 5300 Motor Lead Splice Kit, 5/8 kVAC, 4 to 1/0 AWG Conductor, 12 to 13 in L Splice, EPDM

Vendor Description

3M™ 5300 Series motor lead inline splice kit is perfect to use with copper compression lugs. This shielded and non-shielded splice kit is suitable for splicing motor lead cables to the incoming feeder cables. This kit is rated for 5/8 kV rated applications.
