3M 3M 2104-A


Description

Industry Description

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104 is a 2 part, liquid type, semi flexible resin useful for providing permanent splice protection. This polyurethane resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, potting, sealing, insulating and more.

Modified Industry Description

INSULATING AND SEALING COMPOUND

Specifications

Brand Name
3M
Color
Green
Country of Origin
US
Label_Description
3M(TM) SCOTCHCAST(TM) ELECTRICAL INSULATING AND SEALING COMPOUND 2104A (3.46 OZ), 10 PER CASE
Material
Polyurethane
Package_Quantity
10
Special Features

  • 0.28 % moisture absorption, 1:1 mixing ratio, pale yellow part A, black part B
  • 1000 VAC or less voltage rating
  • 2 years shelf life
  • 444 psi tensile strength
  • 524 V/mil dielectric strength
  • 70 shore A hardness
  • 72-N, 85 series used in these kits
  • 98% elongation

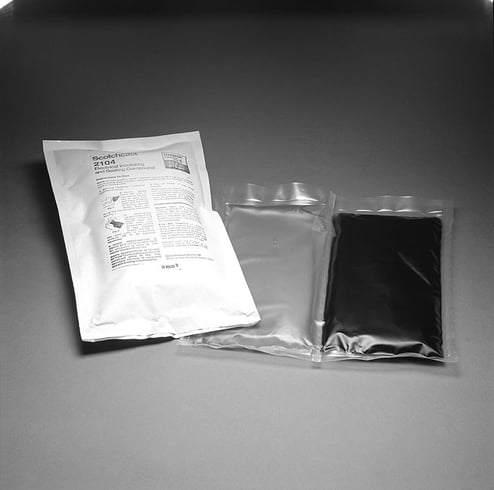

  • Available in two part closed mixing pouch for easy mixing and pouring
  • Bonds to all modern cable jackets, bonds to itself
  • Class B temperature range
  • Container bag size A
  • Gel time 18 min at 73 deg F
  • Part a -35 to 50% phthalic acid, Di-C11-14-branched alkyl, esters, C13-Rich, 15 to 35% polyethylene polyphenylene isocyanate, 15 to 25 % 1,3-butadiene, homopolymer, hydroxyterminated, 5 -20 P,P-methylenebis(phenyl isocyanate), 0 to 10% 1,1-methylenebis(isocyanatobenzene), 0 to 0.5% phenyl isocyanate, part B-55 to 75% polypropylene glycol glycerol triether, 5 to 20% N,N-Di(2-hydroxypropyl) aniline, 5 to 20% phthalic acid, Di-C11-14-branched alkyl esters, C13-rich, 1 to 10 dipropylene glycol
  • Polyurethane material
  • Room temperature cure, low viscosity
  • Tough, semi-flexible, excellent multi-purpose moisture sealing resin
Sub_Brand
3M
Temperature_Rating
0 to 130
