SolaHD SolaHD HZ5000
SolaHD HZ5000
Kirby Risk #: 530630
UPC: 78347257075, 783472570751, 00783472570751
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description
Industrial Control Transformer, 5.0 Kva, Type: NEMA 3R, Volts Primary: 240/480, 230/460, 220/440, Volts Secondary: 120/115/110, Frequency: 50/60 Hz
Modified Industry Description
5KVA 240X480-120
AD Description

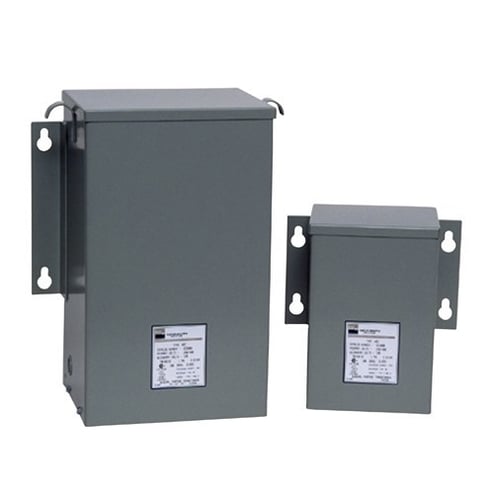

SolaHD HZ5000 HSZ Encapsulated Control Transformer, 240/480 VAC, 230/460 VAC, 220/440 VAC Primary, 120/115/110 VAC Secondary, 5 kVA, 50/60 Hz, 1 Phase
Vendor Description
The HSZ Series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. This Series has 80 deg C rise and have copper winding for industrial applications.
Specifications
| Enclosure |
NEMA 3R
|
|---|---|
| Insulation |
180
|
| Processor |
110/115/120 Volt
|
| Standard |
cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
|
| Type |
Encapsulated
|
| Wattage |
3
|
