3M 3M 557
3M 557
Kirby Risk #: 527867
UPC: 05400721494, 054007214946, 00054007214946
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

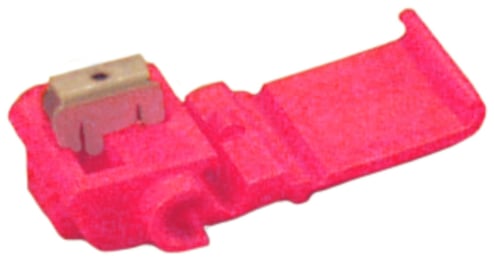

3M™ Scotchlok™ Insulation Displacement Connector 557 provides a dual element connection. The connector is polypropylene insulated and used to connect 2 wires while insulating the connection. It is self stripping and flame retardant.
Modified Industry Description
BOXED
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Red
|
| Conductor Size |
22 - 16 AWG
|
| Country of Origin |
USA
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) ELECTRICAL IDC 557-BOX, PIGTAIL
|
| Package_Quantity |
1000
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
221 deg F
|
| Type |
Flame Retardant Moisture Resistant Self-Stripping
|
| Voltage Rating |
600 VAC
|
