Southwire Southwire SOOW-18/6-BLACK-250-UL
Southwire SOOW-18/6-BLACK-250-UL
Kirby Risk #: 523967
UPC: 03288609341, 07940719806, 032886093418, 00032886093418
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
18-16 CU 6/C BLACK/WHITE/RED/GREEN/ORANGE/BLUE SOOW BLACK 90C 600V N/F 250 FT
Modified Industry Description
SOOW 18/6 BLACK 250 UL
AD Description
Royal® 55823606 Type SOOW Flexible Cord, 600 VAC, (6) 18 AWG Annealed Stranded Bare Copper Conductor, 250 ft Reel L
Vendor Description

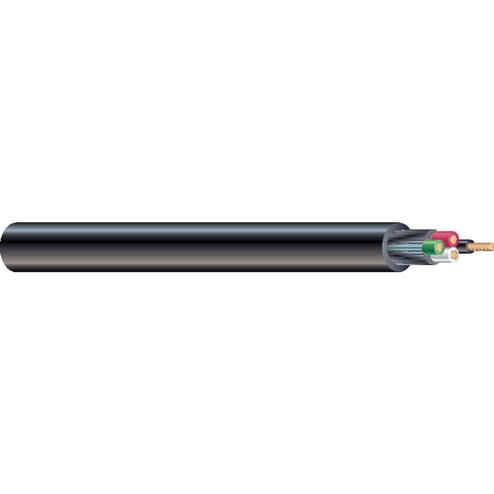

Southwire® Type SOOW multi-conductor flexible cords are manufactured using bare flexible stranded Class K copper conductors, and heat, moisture and oil resistant EPDM rubber insulation. The insulated conductors are cabled with non-wicking wax paper fillers, with a tissue-paper separator wrapped around the assembly to promote easier removal of the jacket. A heat, moisture and oil resistant flexible CPE jacket is extruded over the assembly to complete the construction. Sizes 18 AWG through 10 AWG fully annealed stranded bare copper per ASTM B-174. Some sizes may be subject to minimum order quantity.
Specifications
| Application |
FLEXCORD
|
|---|---|
| Brand Name |
Southwire
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Size |
18
|
| Construction |
CPE JACKET
|
| Core |
18
|
| Country of Origin |
USA
|
| Functions |
N/A
|
| Number Of Conductors |
6
|
| Number_Of_Outlets |
N/A
|
| Outside_Diameter |
0.5
|
| Package_Quantity |
250
|
| Plug_Type |
N/A
|
| Special Features |
|
| Standard |
UL62
|
| Sub_Brand |
Southwire
|
| Type |
SOOW
|
| Voltage Rating |
600
|
