3M 3M 7694-S-4


Description

Industry Description

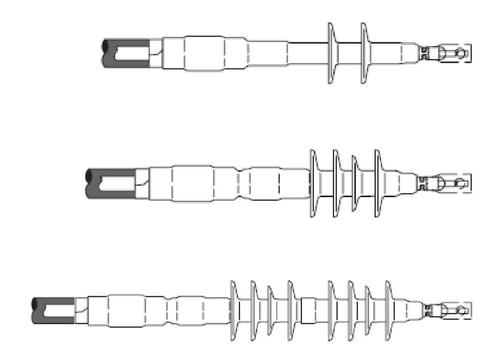

3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

Cold Shrink 4 Skirt Termination, 0.83 TO 1.53 IN OUTER DIAMETER

AD Description

3M™ 054007-42213 7690-S Cold Shrink QT-III Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, Wire Shield and UniShield® Cable, Silicon Rubber, Black

Vendor Description

3M™ Cold Shrink QT-III 7620-S, 7680-S and 7690-S Series Termination Kit includes three 1-piece, 3-phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35 kV.

Specifications

Application
Termination Kit
Brand Name
3M
Cable_Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK QT-III OUTDOOR 4 SKIRT TERMINATION 7694-S-4, 0.83-1.53 IN (38,9-58,9 MM) CABLE INSULATION O.D.
Operating_Voltage
1
Package_Quantity
1
Special_Features

  • 3 terminal
  • 3 terminals
  • Conductor size by voltage (5 kV) 500 to 750 kcmil, (8 kV) 350 to 700 kcmil, (15 kV) 4/0 AWG to 500 kcmil, (25/28 kV) 2/0 AWG to 250 kcmil
  • Conductor size by voltage(5 kV) 500 - 750 kcmil, (8 kV) 350 - 700 kcmil, (15 kV) 4/0 AWG - 500 kcmil, (25/28 kV) 2/0 AWG - 250 kcmil
  • High dielectric constant material regulates the distribution of electric field stress
  • High dielectric-constant material regulates the distribution of electric field stress
  • Includes three 4 skirt, 1 piece, 3 phase, cold shrink terminations
  • Provides a void free seal to tape shield, wire shield and UniShield® power cables
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • QL2-A-4/0-600, QL2-A-1/0-350, QL2-A-2-250 compatible lug
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • UniShield®, wire shield, tape shield shielding type

Standard
IEEE
Sub_Brand
3M
Trade_Size
83/100 to 1-53/100
Type
QT-III
Voltage Rating
110KV
