3M 3M 7692-S-4


Description

Industry Description

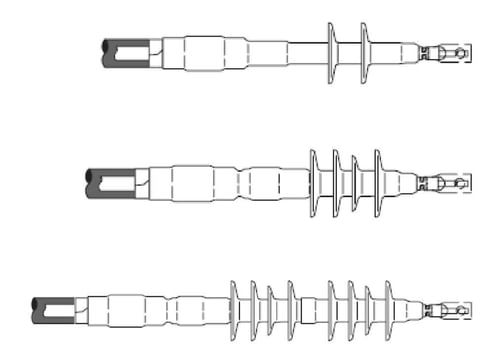

3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

0.72-1.29 IN - COLD SHRINK 4 SKIRT TERMINATION KIT, 5-25/28 KV (3 TERMS/KIT)

AD Description

3M™ 054007-42211 7690-S Cold Shrink QT-III Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, Wire Shield and UniShield® Cable, Silicon Rubber, Black

Vendor Description

3M™ Cold Shrink QT-III 7620-S, 7680-S and 7690-S Series Termination Kit includes three 1-piece, 3-phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35 kV.

Specifications

Application
Termination Kit
Brand Name
3M
Cable_Type
Tape Shield; UniShield(R); Wire Shield
Color
Black
Conductor Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK QT-III OUTDOOR 4 SKIRT TERMINATION 7692-S-4, 0.64-1.08 IN (16,3-27,4 MM) CABLE INSULATION O.D.
Material
Silicon Rubber
Number_Of_Pieces
1
Operating_Voltage
1
Package_Quantity
1
Special Features

  • 1 terminal
  • Conductor size by voltage (5 kV) 4/0 AWG to 400 kcmil, (8 kV) 3/0 AWG to 300 kcmil, (15 kV) 2 to 4/0 AWG, (25/28 kV) 2 to 1/0 AWG
  • High dielectric constant material regulates the distribution of electric field stress
  • Provides a void free seal to tape shield, wire shield and UniShield® power cables
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • UniShield®, wire shield, tape shield shielding type
Standard
IEEE
Sub_Brand
3M
Trade_Size
16/25 to 1-2/25
Type
Cold Shrink QT-III
Voltage Rating
150 KV
