3M 3M 130C-2


Description

Industry Description

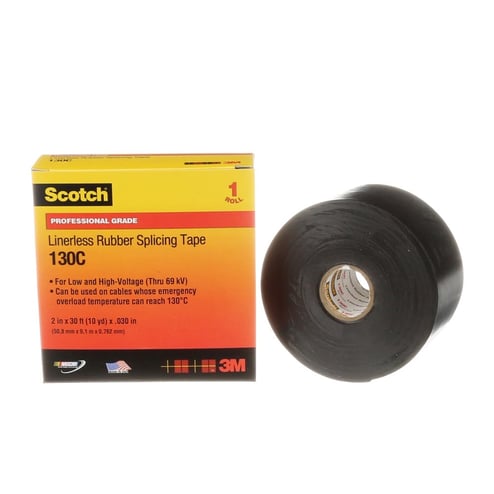

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.

Modified Industry Description

2 IN x 30 FT - LINERLESS RUBBER SPLICE TAPE BLACK

AD Description

Scotch® 054007-41754 Linerless Premium Grade Electrical Tape, 30 ft L x 2 in W, 30 mil THK, Rubber, Rubber Adhesive, Rubber Backing, Black

Vendor Description

Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self-fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low- and high-voltage, bus bar insulation, end-sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups. High voltage insulating; thermally dissipating; self-bonding. Primary electrical insulation for splicing all solid dielectric cables through 69kV. It withstands temperatures up to 194 deg F (90 deg C) with emergency overload up to 266 deg F (130 deg C). The tape has excellent electrical and mechanical properties to provide moisture-seal protection.

Specifications

Application
High Voltage
Backing_Material
Rubber
Brand Name
3M
Color
Black
Country of Origin
US
Label_Description
SCOTCH(R) LINERLESS RUBBER SPLICING TAPE 130C-2X30FT, 2 IN X 30 FT (51 MM X 9,1 M), 12 PER CASE
Material
Rubber
Package_Quantity
12
Size
2 in x 30 ft
Special Features

  • Compatible with common, solid dielectric cable insulation
  • Designed to insulate splices and terminate cables whose overload temperatures can reach 130 deg C
  • Ethylene propylene base
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Excellent physical and electrical properties
  • High thermal conductivity
  • Highly conformable, rubber resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Linerless, self-bonding, primary insulating tape rated through 69 kV
  • Physical and electrical properties unaffected by degree of stretch
  • Provides an excellent thermal dissipation of splice heat
  • Small roll size (OD)
  • Suitable for splicing and terminating cables and wires
  • Tensile strength rating of 17 lb/in meets professional electrical standards
  • Uniform tape unwind from roll
Standard
ASTM D-4388 type 1, 2 & 3 HH-I-3825B
Sub_Brand
3M
Temperature_Rating
90 deg C
Tensile_Strength
250 psi
Thickness
30 mil
Type
Linerless Premium Grade
