3M 3M FP301-1/4-100
3M FP301-1/4-100
Kirby Risk #: 516398
UPC: 05113535574, 051135355749, 00051135355749
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

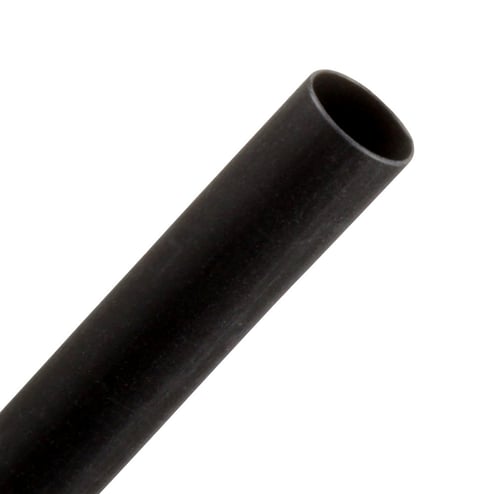

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
Modified Industry Description
1/4 SHRINK TUBE 100'REEL
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Black
|
| Continuous_Operating_Temperature |
-67 degrees to 275 degrees
|
| Country_of_Origin |
USA
|
| Dielectric_Strength |
900
|
| Flammability_Rating |
Pass
|
| Heat_Aging |
Elongation 175%
|
| Heat_Shock |
No dripping, clowing, cracking, passes mandrel wrap test
|
| Inside_Diameter |
0.125
|
| Label_Description |
3M(TM) HEAT SHRINK THIN-WALL TUBING FP-301-1/4-BLACK-100`, 1/4 IN X 100 FT SPOOL, 300 FT PER CASE
|
| Low_Temperature_Flexibility |
No Cracking
|
| Material |
Polyolefin
|
| Minimum_Shrink_Temperature |
212 degrees
|
| Outside_Diameter |
0.25
|
| Package_Quantity |
300
|
| Price |
1.00
|
| Shrink_Ratio |
2:1
|
| Shrink_Temperature |
212 deg F
|
| Special_Features |
|
| Standard |
UL, CSA, ABS
|
| Sub_Brand |
3M
|
| Thickness |
0.025
|
| Type |
Single (Thin) Wall
|
| Voltage_Rating |
600 VAC
|
| Volume_Resistivity |
10(15) ohm/cm
|
