3M 3M 8428-18


Description

Industry Description

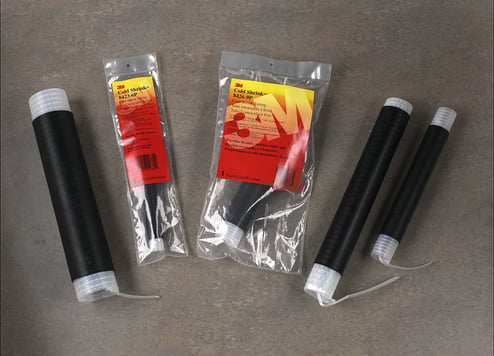

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3M’s proprietary cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material promotes a permanent, durable environmental seal and insulation, with a typical operating temperature range from -40–194°F (-40–90°C).The 8420 insulator meets requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1 kV.Applications: Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated to 1000 V. Good for repairs and environmental sealing for communication and other non-electrical applications.Important: Use insulation jacket or connector O.D. for final ordering criteria.* Mastic pads included for cable O.D. build-up. ** Kit contains adapters. *** These sizes are listed for availability only and are not designed to be usedas primary insulation. These tubes are for conduit sealing and breakouts. ****Maximum connector length: 5.625Point of Purchase packaging designated by P. Example: 8423-6P

Modified Industry Description

Cold Shrink Connector Insulators

AD Description

3M™ 054007-34461 8420 Splice Cold Shrink Connector Insulator, 49.2 mm Min Dia, 24.1 mm Dia, 1400 psi Tensile, EPDM Rubber Insulation

Vendor Description

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3M™ 's proprietary cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material promotes a permanent, durable environmental seal and insulation.

Specifications

Brand Name
3M
Cable_Type
Power Cable
Color
Black
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK INSULATOR 8428-18, 500-800 KCMIL, 10 PER CASE
Material
EPDM Rubber Insulation
Package_Quantity
10
Shielding_Type
Non-Shielded; Tape Shield; UniShield(R); Wire Shield
Size
500 kcmil; 600 kcmil; 650 kcmil; 700 kcmil; 750 kcmil; 800 kcmil
Special Features

  • -40 to 194 deg F temperature rating, 1 kV voltage rating
  • 0.95 min cable Dia for seal, 1.94 in max Dia insulator cable or connector covers
  • 1 conductor, 650 kcmil, 750 kcmil, 500 kcmil, 800 kcmil, 700 kcmil, 600 kcmil conductor size
  • 10/case
  • 18 in relaxed tube length, 14 in maximum connector length
  • 500 to 800 kcmil conductor size
  • Copper conductor with polyolefin foam
  • Excellent wet electrical properties
  • Insulation of in-line conductor transition connectors
  • Insulation of secondary splices, copper or aluminum conductors
  • No torches or heat required, good thermal stability
  • Physical protection and moisture sealing for air insulated connectors and lugs such as spacer cable and lug connections to bus bar
  • Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated up to 1000 volts
  • Relocation of service, dig-in repairs, sheath repairs, environmental sealing for communication and other non-electrical applications
  • Resists acids, alkali and ozone
  • Seals tight, retains its resiliency and pressure even after prolonged years of aging and exposure
  • Simple installation, requires no tools and accommodates a wide range of cable sizes
  • Tough rubber formulation withstands backfilling
  • UniShield®, wire shield, non-shielded, tape shield cable
  • Water resistant, no mastic or tape required to seal
Sub_Brand
3M
Tensile_Strength
1400
Type
Splice
Voltage Rating
1k
