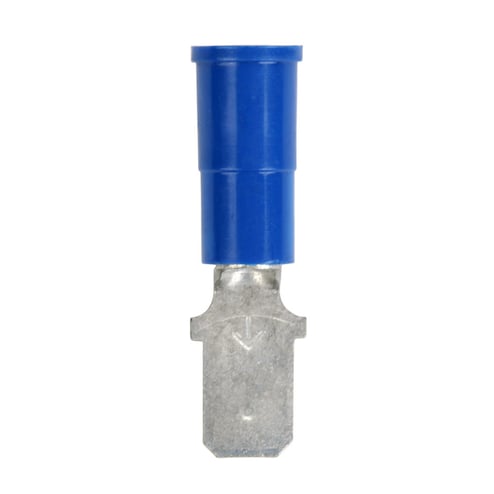

3M 3M MVU14-250DMX


Description

Industry Description

3M™ Scotchlok™ Color-Coded Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

22-18 INS MALE DISC

AD Description

Scotchlok™ MVU14-250DMX Standard Disconnect Tab, 16 to 14 AWG Conductor, 1/4 in Tab, 0.085 in ID Butted Barrel, ETP Copper, Blue

Vendor Description

The flared vinyl sleeve insulation on our 3Mâ„¢ Scotchlokâ„¢ Color-Coded Standard Male Disconnect Terminals helps ensure proper crimping and is abrasion-resistant for safety. The tongue slips over the female tap to create a secure attachment that doesn't loosen over time, and the butted-seam barrel has a funnel-shaped, rigid-molded, polyvinyl chloride sleeve for added protection. The blue sleeve helps you guide the wire into the correct position and relieves mechanical stress at the insulation point to ensure proper electrical contact. This terminal are UL Listed, CSA Certified and RoHS 2011/65/EU Compliant for quality and safety.

Specifications

Brand Name
3M
Color
Blue
Conductor Size
16 to 14 AWG
Country of Origin
US
Label_Description
MALE DISCONNECT VINYL INSULATED, 100/BOTTLE
Material
ETP Copper
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • Attached to mating part by tongue of female part slipping over male tab
  • Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect, Male connection
  • Vinyl insulated
Standard
UL and CSA
Sub_Brand
3M
Tab_Size
1/4 in
Terminal_Size
16 - 14 AWG
Type
Standard
Voltage Rating
600 VAC
