3M 3M MV14-10R/LX


Description

Industry Description

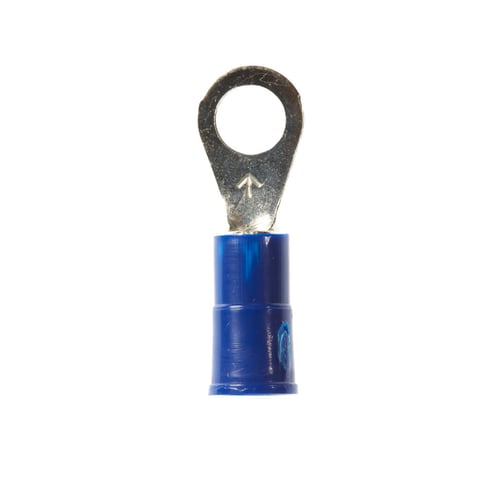

3M™ Scotchlok™ Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

16-14 INS RING TERM

AD Description

3M™ Scotchlok™ 051128-58749 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel, Vinyl, Blue

Vendor Description

3M™ Scotchlok™ Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.

Specifications

Brand Name
3M
Color
Blue
Conductor Range
16-14
Conductor Size
16 to 14
Country of Origin
US
Finish
Tin Plated
Insulation_Material
Vinyl
Label_Description
RING VINYL INSULATED, 100/BOTTLE
Material
Vinyl
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • 100 terminals/bottle
  • 500 terminals/case
  • Blue vinyl insulated, brazed seam barrel ensures a secure fit and offers reliable performance
  • Crimp termination
  • Free hanging (in-line) mounting
  • Funnel designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard style ring tongue fits around the stud
Standard
UL and CSA
Stud_Size
#10
Sub_Brand
3M
Terminal_Size
16 - 14 AWG
Type
Insulated Standard
Voltage Rating
600/1000
