3M 3M 560B
3M 560B
Kirby Risk #: 516367
UPC: 05400720090, 054007200901, 00054007200901
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

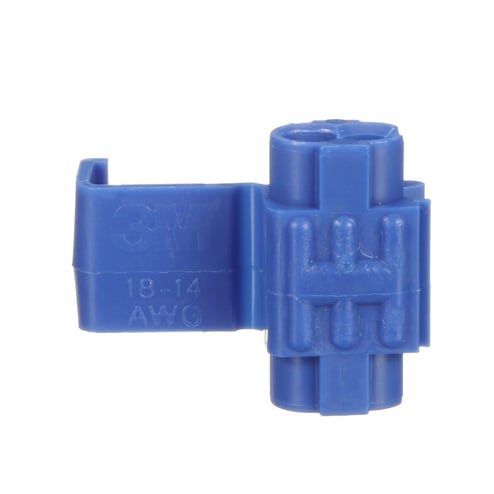

3M™ Scotchlok™ 560B IDC Double Run or Tap Connector electrically connects a tap wire to a run (through) wire while insulating the connection. This connector insulation is manufactured from polypropylene and is ideal for tap or parallel splicing. It is 600V-rated for building wire and 1000V-rated for signs, fixtures and luminaires. It withstands temperatures of 194 degrees F (90 degrees C).
Modified Industry Description
Displacement Connector 18 To 14 awg Tap / Parallel
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Blue
|
| Conductor Size |
18 - 16 AWG / 14 AWG Stranded
|
| Country of Origin |
USA
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) ELECTRICAL IDC 560B-BOX, DOUBLE RUN OR TAP
|
| Material |
Tin Plated Brass
|
| Package_Quantity |
1000
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Temperature_Rating |
221 deg F
|
| Type |
Flame Retardant
|
| Voltage Rating |
600 VAC
|
