3M 3M 567


Description

Industry Description

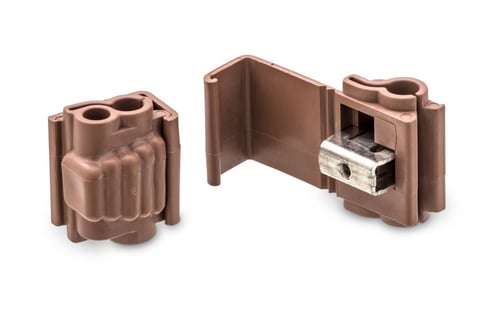

3M™ Scotchlok™ Insulation Displacement Connector 567 electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping.

Modified Industry Description

12 - 10 AWG - DISPLACEMENT CONNECTOR (100/BOX)

Specifications

Application
Tap
Brand Name
3M
Color
Brown
Conductor Range
12-10
Conductor Size
18 - 14 AWG (Tap) 12 - 10 AWG (Run)
Country of Origin
USA
Label_Description
3M(TM) SCOTCHLOK(TM) ELECTRICAL IDC 567-BOX, RUN AND TAP
Material
Copper
Package_Quantity
1000
Special Features

  • 18 - 14 AWG (tap)/ 12 - 10 AWG (run)
  • Brass U-contact
  • Dual element connection
  • Maximum recommended current for general purpose is 18 AWG - 7 A, 16 AWG - 10 A, 14 AWG-15 A, 12 AWG-20 A, 10 AWG-25 A
  • Recommended installation tools - crimping tool no E-9BM, 9 in linemans pliers
  • Self-stripping and flame retardant

Standard
UL and CSA
Sub_Brand
3M
Tap_Size
18 - 14
Temperature_Rating
221 Degree Fahrenheit
Type
Insulation Displacement
Voltage Rating
600
