3M 3M 10014
3M 10014
Kirby Risk #: 516348
UPC: 05400712899, 054007128991, 00054007128991
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
They are designed to connect copper conductors. Each connector is electro-tin plated to resist electrolytic corrosion. They are installed using standard industry tooling. Chamfered ends and an integral center cable stop ensure simplicity and ease of conductor insertion.
Modified Industry Description
COPPER COMPRESSION CONN
AD Description

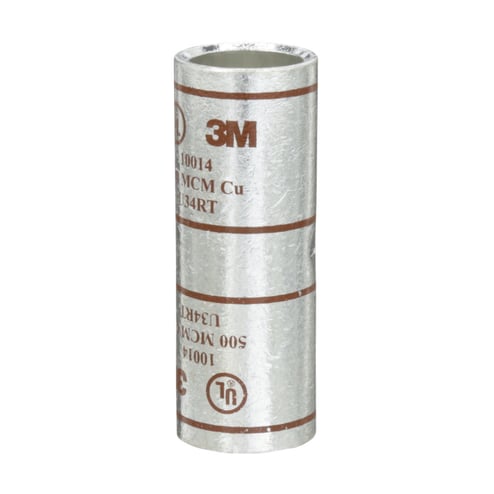

Scotchlok™ 054007-12899 10000 Non-Insulated Standard Barrel Compression Connector, 500 kcmil Stranded Copper Conductor, 2.88 in L, Copper Plated
Vendor Description
3M™ Scotchlok™ connectors and tools are engineered to work together to achieve consistently superior performance in the field.
Specifications
| Application |
Copper Conductor Only
|
|---|---|
| Brand Name |
3M
|
| Color |
Brown
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
500 kcmil
|
| Country of Origin |
CL
|
| Finish |
Electro-Tin Plated
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) COPPER STANDARD BARREL CONNECTOR 10014 , BROWN, 500 KCMIL, 3 PER CASE
|
| Material |
Copper Plated
|
| Package_Quantity |
3
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Temperature_Rating |
105 DEG C
|
| Type |
Non-Insulated Standard Barrel
|
| Voltage Rating |
Up to 35 kVAC
|
