3M 3M 5304

Industry Description

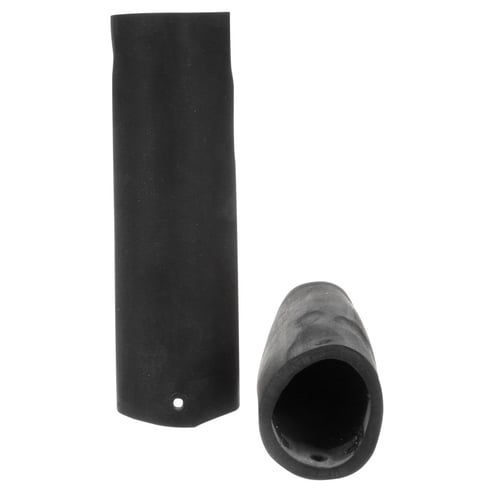

3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal.These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used.Kit contents include:• (3) Pigtail lug covers• (3) Mastic sealing strips• (3) Locking pins (kits 5302–5304 only)• (3) Tubes of silicone grease• (1) Instruction sheet

Modified Industry Description

Motor Lead Splicing Kit, 4/0 TO 500 MCM MOTOR LEAD, 250 TO 500 MCM FEEDER

AD Description

3M™ 054007-12266 5300 3-Cable Motor Lead Splice Kit, 0 to 1000 VAC, 250 to 500 kcmil, 4/0 AWG to 500 kcmil Conductor, 6.7 in L Splice, EPDM Rubber

Vendor Description

3M™ 5300 Series Motor Lead Pigtail Splice Kit is perfect to use with copper compression, 1-hole lugs. It is designed to splice motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 VAC or less. The kit can make 3 splices and can be used on cables that can withstand a maximum temperature of 194 deg F (90 deg C).
