3M 3M 85-10


Description

Industry Description

3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts. Splices may be inline, wye, X, butt and dead-end spliceconfigurations (for non-shielded cable) using split bolts, H tap or C tap compression connectors.

Modified Industry Description

8 TO 4AWG SPLICING KIT

AD Description

3M™ Scotchcast™ 054007-11846 85 Series 4-Way Multi-Mold Resin Splice Kit, 1 kVAC, 7/16 in Cable, 4, 8 AWG Conductor, 5 in L Splice, Resin

Vendor Description

3M™ Scotchcast™ 85 Series Multi-Mold Resin Splice Kit is specially designed to splice 1kV-rated cables. This versatile splice kit electrically insulates odd sized and odd shaped splices in underground applications.

Specifications

Brand Name
3M
Cable_Size
4 AWG; 8 AWG
Cable_Type
Non-Shielded
Color
Green
Conductor Size
4 AWG, 8 AWG
Country of Origin
US
Label_Description
3M(TM) SCOTCHCAST(TM) MULTI-MOLD RESIN SPLICE KIT 85-10, 8 AWG STRANDED, 10 PER CASE
Material
Resin
Package_Quantity
1
Special Features

  • 1-1/2 in maximum sheath opening length
  • 1-3/4 in maximum conductor size (height plus width)
  • 10/case
  • 4-1/4 in spacer web, 0.85 sealing putty
  • 444 psi tensile strength
  • 524 V/mil dielectric strength
  • 7/16 in OD run/tap cable
  • 8 AWG, 4 AWG conductor size
  • 98% elongation
  • Accommodates 4 AWG stranded H or C-tap compression conductors

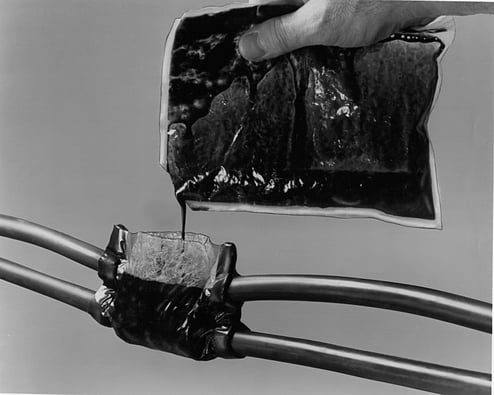

  • All materials provided to insulate and waterproof one splice, compound has low viscosity for fast, complete filling of splice and low exotherm which will not damage plastic insulated cable
  • Convenient closed mixing pouch permits clean, easy resin handling
  • Electrically insulates odd sized and odd shaped splices on cables
  • No special tools required
  • Pliable plastic molds are formed around splices
  • Rated for 1 kV cables
  • Versatility designed into each kit accommodates a wide range of cable size
  • Wrap around polyester film mold contains porous webbing which assures proper insulation spacing around splice and connector
Sub_Brand
3M
Temperature_Rating
90 to 130
Type
4-Way Multi-Mold Resin
Voltage Rating
1
