3M 3M MVU18-250DMX
3M MVU18-250DMX
Kirby Risk #: 516320
UPC: 05112858782, 051128587829, 00051128587829
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

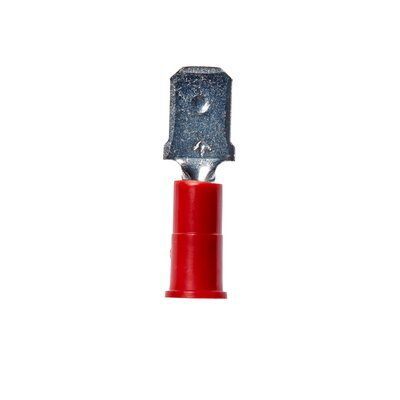

3M™ Scotchlok™ Color-Coded Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
22-18 INS MALE DISC
AD Description
Scotchlok™ MVU18-250DMX Standard Disconnect Tab, 22 to 18 AWG Conductor, 1/4 in Tab, 0.065 in ID Butted Barrel, ETP Copper, Red
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Red
|
| Conductor Size |
22 to 18 AWG
|
| Country of Origin |
US
|
| Label_Description |
MALE DISCONNECT VINYL INSULATED, 100/BOTTLE
|
| Material |
ETP Copper
|
| Operating_Voltage |
100 per bottle
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Tab_Size |
1/4 in
|
| Terminal_Size |
22 - 18 AWG
|
| Type |
Standard
|
| Voltage Rating |
600 VAC
|
