3M 3M MNG14-250DMIX
3M MNG14-250DMIX
Kirby Risk #: 516318
UPC: 05112858774, 051128587744, 00051128587744
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

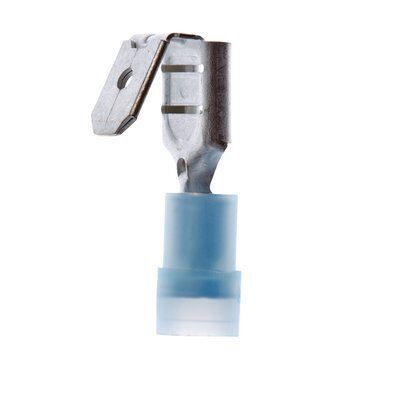

3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
16-14 INS MALEDISC
AD Description
Scotchlok™ MNG14-250DMIX Disconnect Tab, 16 to 14 AWG Conductor, 1/4 in Tab, 0.17 in ID Butted Barrel, ETP Copper, Blue
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Blue
|
| Conductor Range |
16-14
|
| Conductor Size |
16 to 14 AWG
|
| Country of Origin |
US
|
| Insulation_Material |
Nylon
|
| Label_Description |
MALE DISCONNECT NYLON INSULATED, 50/BOTTLE
|
| Material |
ETP Copper
|
| Operating_Voltage |
50 per bottle
|
| Package_Quantity |
50
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Tab_Size |
1/4 in
|
| Terminal_Size |
16 - 14 AWG
|
| Type |
Disconnect
|
| Voltage Rating |
600 VAC
|
