3M 3M MVU14-250DMFX


Description

Industry Description

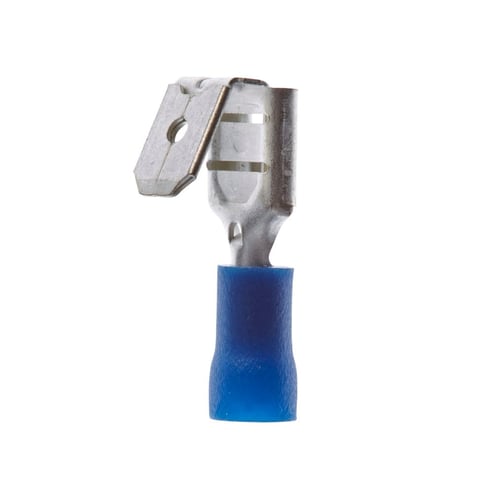

3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.

Modified Industry Description

INS MALE/FEM DISC

Specifications

Brand Name
3M
Color
Blue
Conductor Size
16 to 14
Country of Origin
TW
Finish
Tin Plated
Label_Description
PIGGY-BACK DISCONNECT MALE FEMALE VINYL INSULATED, 100/BOTTLE
Material
Vinyl
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • Allows for quick and easy disconnect of wires
  • Blue vinyl insulated, butted seam barrel with a funnel designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of durable brass for good conductivity and has corrosion resistant tin plating
  • The tongue portion with fingers grip a male quick slide and a tongue extension grips a female quick slide
Sub_Brand
3M
Tab_Size
0.25 in W x 0.032 in THK
Terminal_Size
16 - 14 AWG
Type
Insulated Piggy-Back
Voltage Rating
600 to 1000
