3M 3M 72-N4


Description

Industry Description

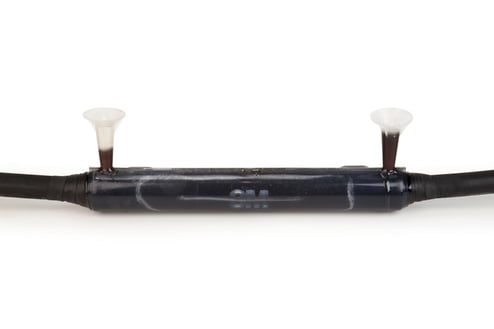

3M™ Scotchcast™ 72 N Series Inline Splice Kit is a 1 kV rated, rigid body splice designed to join signal and control cables. It fits shielded or unshielded constructions of plastic or rubber jacketed cables. It is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig ins.

Modified Industry Description

SPLICING KIT

AD Description

3M™ Scotchcast™ 054007-10629 72-N Non-Re-Enterable Resin Splice Kit, 1 kVAC, 1 to 2 in Cable, 22 AWG Conductor, 15-5/8 in L Splice, Resin

Vendor Description

3M™ Scotchcast™ 72-N Series Inline Splice Kit is a 1 kV rated, rigid body splice designed to join signal and control cables. It fits shielded or unshielded constructions of plastic or rubber jacketed cables. It is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig-ins.

Specifications

Brand Name
3M
Cable_Type
Control/Non-Shielded/Shielded
Conductor Size
22
Country of Origin
US
Label_Description
3M(TM) SCOTCHCAST(TM) INLINE SPLICE KIT 72-N4 1.00-2.00 IN , 1 PER CASE
Material
Resin
Package_Quantity
1
Special Features

  • 1 to 2 in od cable diameter
  • 1/case
  • 150% elongation
  • 20 AWG, 10 AWG, 12 AWG, 16 AWG, 22 AWG, 18 AWG, 14 AWG conductor size
  • 600 psi tensile strength
  • Compound has low viscosity for fast, complete filling of splice and low exotherm which will not damage plastic insulated cable
  • Convenient closed mixing pouch container permits clean, easy compound handling
  • Designed for in-line splicing of underground systems, joining of cable reel ends, direct burial applications and repair of cable failures
  • Fits shielded construction of plastic or rubber jacketed cables
  • Kits provide all materials needed to re-insulate, reconnect shield and rejacket one splice
  • No special tools required, can use normal hand tools only and non re-enterable
  • Rigid body splice for joining signal and control cables
  • Tape 23 helps in sealing collars or splice body ends and the jumper wire with clips offers solderless shield continuity on shielded cables
  • The polypropylene mold has a built in spacer web that automatically offers cable centering and compound coverage
Sub_Brand
3M
Temperature_Rating
90 to 130
Type
Non-Re-Enterable Resin
Voltage Rating
1
