3M 3M SDR-K


Description

Industry Description

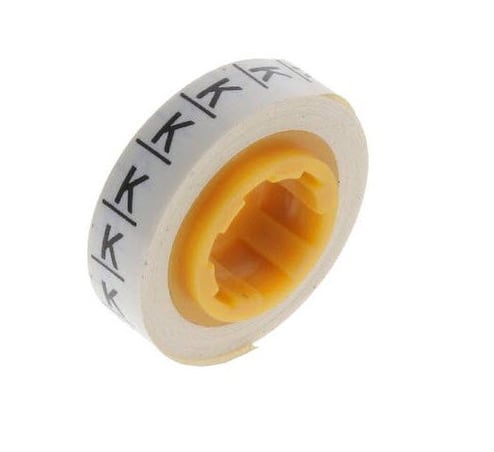

3M™ ScotchCode™ Wire Marker Tape Refill Roll SDR is available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols.

Modified Industry Description

WIRE MARKER TAPE

AD Description

3M™ ScotchCode™ 054007-09398 SDR Pre-Printed Wire Marking Tape, 96 in L x 0.215 in W, K, White, Polyester Film

Vendor Description

3M™ ScotchCode™ Wire Marker Tape Refill Roll SDR is available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols.

Specifications

Background_Color
White
Brand Name
3M
Country of Origin
USA
Label_Description
3M(TM) SCOTCHCODE(TM) WIRE MARKER TAPE REFILL ROLL SDR-K
Package_Quantity
10.000
Special Features

  • -40 to 121 deg C operating temperature range, 0 to 49 deg C application temperature, 26 deg C storage temperature
  • 0.003 in H x 0.215 in W label
  • 10 refill rolls
  • 3 mil thickness
  • 3 mil THK
  • 6/0 - 24 AWG fits wire dia
  • Adhesion to steel 25 oz/in, adhesion to backing 10 oz/in
  • Alphabetic style legend
  • Automotive applications on tubing, hoses and replacement parts
  • Compatible with 3M™ STD Scotch Code tape dispenser for convenient usage
  • Compatible with 3M™ STD ScotchCode™ tape dispenser for convenient usage
  • Fits 6/0 to 24 AWG Dia wire
  • Identification of terminal blocks, terminal strips and wire in panel boards or a piece of switchgear
  • Number of characters 6 per inch
  • Phase identification on large or small gauge wire or cable
  • The smooth surface of this tape allows dirt and grime to be easily wiped off, providing text legibility even after extended exposure to a build up of contamination
  • The smooth surface of this tape allows dirt and grime to be easily wiped off, providing text legibility even after extended exposure to a build-up of contamination
Sub_Brand
ScotchCode
Type
Tape Roll Refill
