3M 3M 314U
3M 314U
Kirby Risk #: 516223
UPC: 05400709233, 054007092339, 00054007092339
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

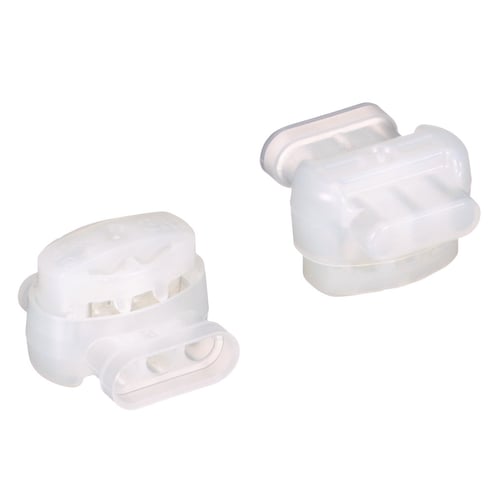

3M™ Scotchlok™ Insulation Displacement Connector 314U provides a dual element connection for dry environment applications. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and flame retardant.
Modified Industry Description
SELF STRIPPING CONN
AD Description
Scotchlok™ 054007-09233 Flame Retardant Self-Stripping Electrical IDC, 22 to 14 AWG
Vendor Description
Secure your wire ends with confidence using the 3Mâ„¢ Scotchlokâ„¢ 314U IDC Pigtail Electrical Connector. This white-colored connector delivers great results in dry environment applications and is designed for use with stranded and solid conductors measuring 22 to 14 AWG. Its nylon interior insulates connections between 2 or 3 wire ends. Use it for building wire connections rated 600V or less and for sign, luminaire and fixture applications rated up to 1000V. This pigtail electrical connector is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
White
|
| Conductor Size |
22 - 14 AWG
|
| Country of Origin |
US
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) ELECTRICAL IDC 314U-BIN, PIGTAIL, FLAME RETARDANT
|
| Package_Quantity |
1000
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
221 deg F
|
| Type |
Flame Retardant Self-Stripping
|
| Voltage Rating |
600 VAC
|
