3M 3M 5551


Description

Industry Description

3M™ Cold Shrink/Armorcast, Armored or Non-Armored Splice Kit 5551-3C-AC is for splicing 3/C, 5/8 kV shielded, armored and non-armored cables. Connectors are not included. Kits include armorcast structural material to reconstitute the cable’s armor. Meets the requirements of IEEE 404. Each kit makes one 3/C splice. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Modified Industry Description

QUICK SPLICE KIT

AD Description

3M™ 5551 5550 Cold Shrink Splice Kit, 5/8 kVAC, 6 to 3/0 AWG Conductor, 19 in L Splice, EPDM

Vendor Description

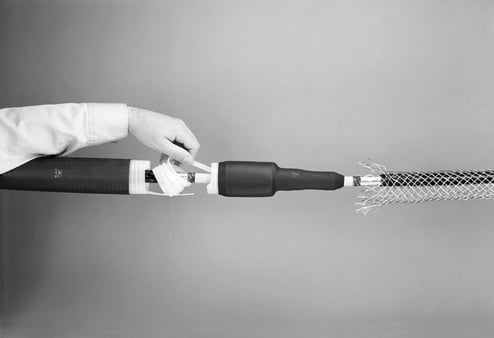

3M™ 5550 Series Cold Shrink Tape Inline Splice Kit is designed for splicing 5/8 kV-rated power cables with aluminum or copper conductors. This kit is designed to splice tape shield, wire shield, UniShield$$$$$$$$$$® or non-shielded cables.

Specifications

Brand Name
3M
Cable_Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 3/0 AWG; 4 AWG; 4/0 AWG (Cu Only); 6 AWG
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK RUBBER SPLICE KIT 5551 5KV AND 8KV, 6-4/0 AWG COPPER OR 6-3/0 AWG ALUMINUM, 19 IN, 1 PER CASE
Number_Of_Cables
1
Package_Quantity
1
Special Features

  • 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4 AWG, 4/0 AWG Copper, 6 AWG conductor sizes
  • 1400 PSI tensile strength
  • 3 Splices/Kit, 1/Case
  • 3.3 in copper maximum conductor length, 2.7 in aluminum maximum conductor length
  • 365 V/mil dielectric strength
  • 6 - 4/0 AWG copper, 6 - 3/0 AWG aluminum conductor range
  • 750% elongation
  • Insulator and jacket is made of EPDM for easy installation
  • Optional ground strap assembly GS-1
  • Provides splicing on tape shield, wire shield and UniShield® cables
  • This kit is suitable for use on solid dielectric cables, indoor or outdoor locations and direct burial applications
Sub_Brand
3M
Type
Splice
Voltage Rating
625
