3M 3M ITCSN-0400-48


Description

Industry Description

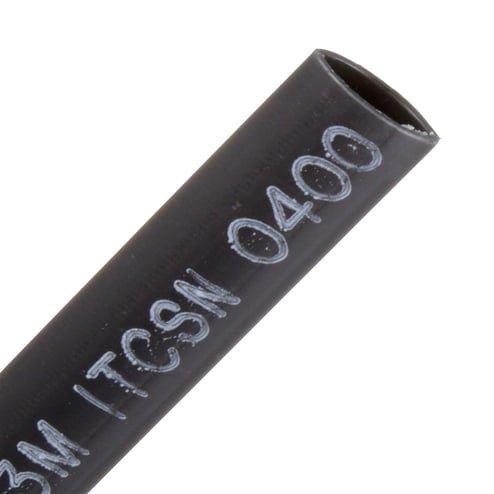

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Modified Industry Description

Heat Shrink

Specifications

Brand Name
3M
Color
Black
Continuous_Operating_Temperature
110 degrees - 230 degrees
Country of Origin
US
Dielectric_Strength
500
Heat_Shock
No dripping, flowing, cracking
Label_Description
3M(TM) HEAT SHRINK HEAVY-WALL CABLE SLEEVES FOR 1KV ITCSN-0400-48-BOX, 12-6 AWG, EXPANDED/RECOVERED I.D. 0.40/0.15 IN, 48 IN LENGTH, 5 PIECES - BOXED
Low_Temperature_Flexibility
No Cracking
Minimum_Shrink_Temperature
250 degrees
Package_Quantity
5
Shrink_Ratio
3 to 1
Special Features

  • 0.05% water absorption
  • 0.35 to 0.17 in OD cable
  • 1 x 10^14 Ohm-cm volume resistivity
  • 10 years shelf life from date of manufacture
  • 500 V/mil dielectric strength
  • Fast and easy installation
  • Low temperature flexibility, no cracking
  • No dripping, flowing, cracking heat shock
  • Resists acids and alkalis
  • Rugged weather resistant protection
  • Thick wall top resists puncture and abrasion damage
  • UV-resistant
Standard
UL, CSA
Sub_Brand
3M
Type
Heavy Wall
Voltage Rating
600
Volume_Resistivity
1 x 10(14) ohm/cm
