3M 3M ITCSN-2000-12


Description

Industry Description

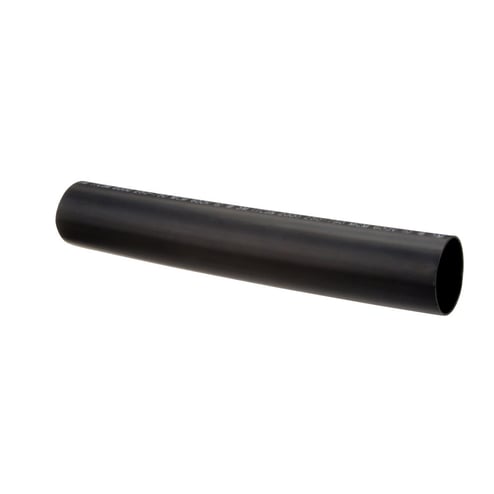

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Modified Industry Description

HEAT SHRINK SLEEVE

Specifications

Brand Name
3M
Color
Black
Continuous_Operating_Temperature
110 degrees - 230 degrees
Country of Origin
US
Dielectric_Strength
500
Heat_Shock
No dripping, flowing, cracking
Label_Description
3M(TM) HEAT SHRINK HEAVY-WALL CABLE SLEEVES FOR 1KV ITCSN-2000-12-BOX, 250-750 KCMIL, EXPANDED/RECOVERED I.D. 2.00/0.65 IN, 12 IN LENGTH, BOXED
Low_Temperature_Flexibility
No Cracking
Material
Polyolefin
Minimum_Shrink_Temperature
250 degrees
Package_Quantity
10
Shrink_Ratio
3:1
Shrink_Temperature
250
Special Features

  • 1.28 specific gravity
  • 2400 psi ultimate tensile strength
  • 475% ultimate elongation
  • Adhesive lined
  • Direct buried or submersible
  • Fast and easy installation
  • Flame-retardant
  • Heat shrink splice type
  • Insulating secondary splices
  • Physical protection and moisture sealing of high voltage air insulated connectors and lugs, such as lug connections to bus bars
  • Primary electrical insulation for solid dielectric wire and cable rated to 1000 VAC
  • Relocation of service
  • Resists acids and alkalies
  • Rugged weather resistant protection
  • Shrink ratio as high as 4:1
  • Thick wall top resists puncture and abrasion damage
  • UL rated to 600 VAC, can be used up to 1 kV
  • UV resistant
  • Versatile, a minimum number of sizes cover the entire range of applications
Standard
UL, CSA
Sub_Brand
3M
Type
Heavy Wall
Voltage Rating
600
Volume_Resistivity
1 x 10(14) ohm/cm
