3M 3M ITCSN-1100-9
3M ITCSN-1100-9
Kirby Risk #: 516207
UPC: 05400708893, 054007088936, 00054007088936
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

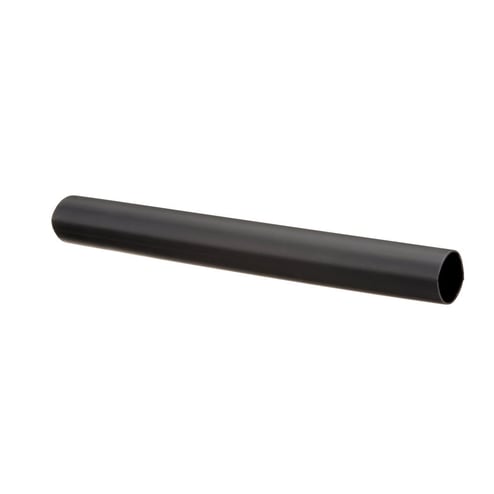

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.
Modified Industry Description
2 - 4/0 AWG - HEAT SHRINK CABLE SLEEVE, BLACK
Specifications
| Brand Name |
3M
|
|---|---|
| Cable_Range |
2 - 4/0 AWG
|
| Color |
Black
|
| Continuous_Operating_Temperature |
110 degrees - 230 degrees
|
| Country of Origin |
US
|
| Dielectric_Strength |
500V/mil
|
| Heat_Shock |
No dripping, flowing, cracking
|
| Label_Description |
3M(TM) HEAT SHRINK HEAVY-WALL CABLE SLEEVES FOR 1KV ITCSN-1100-9-BOX, 2-4/0 AWG, EXPANDED/RECOVERED I.D. 1.10/0.37 IN, 9 IN LENGTH, BOXED
|
| Low_Temperature_Flexibility |
No Cracking
|
| Material |
Polyolefin
|
| Minimum_Shrink_Temperature |
250 degrees
|
| Package_Quantity |
25
|
| Shrink_Ratio |
3:1
|
| Shrink_Temperature |
250
|
| Special Features |
|
| Standard |
UL, CSA
|
| Sub_Brand |
3M
|
| Type |
Heavy Wall
|
| Voltage Rating |
600
|
| Volume_Resistivity |
1 x 10(14) ohm/cm
|
