3M 3M 5318


Description

Industry Description

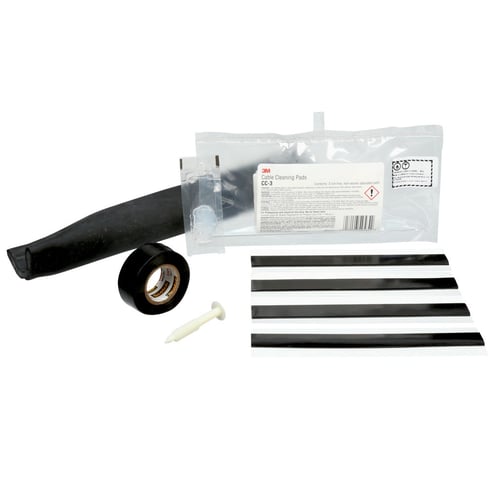

3M™ Motor Lead Inline Splicing Kits 5316-5319 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.

Modified Industry Description

Motor Lead Splicing Kit, 2 TO 250 MCM MOTOR LEAD, 1/0 TO 250 MCM FEEDER

AD Description

3M™ 5318 5300 Motor Lead Pigtail Splice Kit, 5/8 kVAC, 2 AWG to 250 kcmil Conductor, 11 in L Splice, EPDM Rubber

Vendor Description

3M™ 5300 Series motor lead pigtail splice kit is perfect to use with copper compression and 2-hole lugs. This non-shielded splice kit is designed to splice wet/dry, motor lead cables to the incoming feeder cables. This kit is rated for 5/8 to 1 kV rated applications.

Specifications

Brand Name
3M
Cable_Type
Non-Shielded
Color
Black
Country of Origin
US
Label_Description
3M(TM) MOTOR LEAD SPLICING KIT 5318, 5KV & 8KV
Material
EPDM Rubber
Operating_Temperature
90°C
Series
5300
Sub_Brand
3M
Type
Motor Lead Pigtail Splice
Voltage Rating
5/8
