3M 3M 5316
3M 5316
Kirby Risk #: 516194
UPC: 05400708313, 054007083139, 00054007083139
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
3M™ Motor Lead Inline Splicing Kits 5316-5319 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.
Modified Industry Description
Motor Lead Splicing Kit, 8 TO 4 AWG FEEDER
AD Description

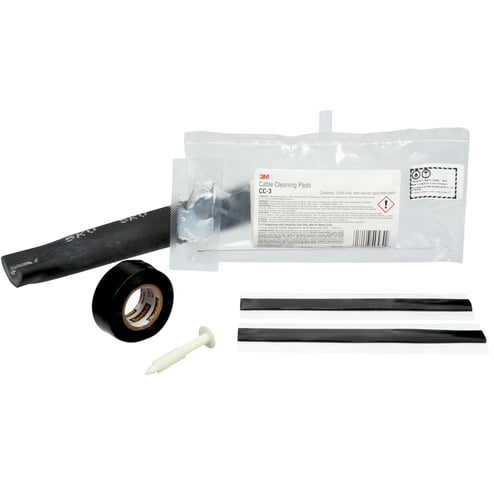

3M™ 5316 5300 Motor Lead Pigtail Splice Kit, 5/8 kVAC, 8 to 4 AWG Feeder Cable, 10 to 4 AWG Motor Lead Conductor, 8 in L Splice, EPDM Rubber
Vendor Description
3M™ 5300 Series motor lead pigtail splice kit is perfect to use with copper compression and 2-hole lugs. This non-shielded splice kit is designed to splice wet/dry, motor lead cables to the incoming feeder cables. This kit is rated for 5/8 to 1 kV rated applications.
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Black
|
| Country of Origin |
US
|
| Label_Description |
3M(TM) MOTOR LEAD PIGTAIL SPLICE 5316, 5KV & 8KV
|
| Operating_Temperature |
90°C
|
| Sub_Brand |
3M
|
| Type |
Motor Lead Pigtail Splice
|
| Voltage Rating |
625
|
