3M 3M MVU14-4FB/SK


Description

Industry Description

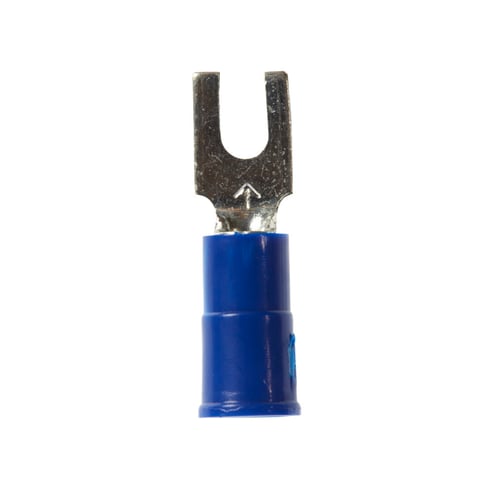

3M™ Scotchlok™ Color-Coded Small Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

Fork Terminal

AD Description

Scotchlok™ 054007-02258 Insulated Block Fork Terminal, 16 to 14 AWG Conductor, 0.85 in L, Butted Seam Barrel, Copper, Blue

Vendor Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud.

Specifications

Brand Name
3M
Color
Blue
Conductor Size
16 to 14 AWG
Country of Origin
US
Finish
Electro-Tin Plated
Label_Description
VINYL INSULATED BUTTED SEAM BLOCK FORK TERMINAL
Material
Copper
Operating_Voltage
1000 per bulk box
Package_Quantity
1000
Special Features

  • Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
  • Blue vinyl-insulated, butted seam barrel ensures a secure fit and offers reliable performance
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
Standard
UL and CSA
Stud_Size
#4
Sub_Brand
3M
Terminal_Size
16 - 14 AWG
Type
Insulated Block
Voltage Rating
600/1000 VAC
