3M 3M MU14-250DFHTX


Description

Industry Description

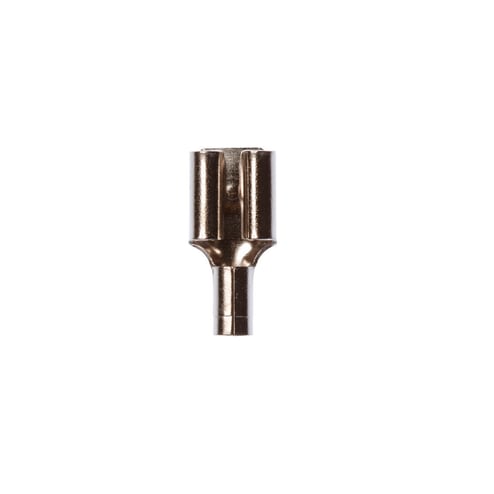

3M™ Scotchlok™ High-Temperature Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Its steel construction offers durability and a nickel-plated finish resists corrosion.

Modified Industry Description

16-14 FEM DISCONN

AD Description

3M™ Scotchlok™ MU14-250DFHTX Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Steel, Blue, Non-Insulated

Vendor Description

3M™ Scotchlok™ high temperature female disconnect terminal has dents and rolled edges for quick and easy disconnect.

Specifications

Brand Name
3M
Color
Blue
Conductor Size
16 to 14
Country of Origin
US
Finish
Nickel Plated
Label_Description
HIGH TEMPERATURE FEMALE DISCONNECT NON-INSULATED, 100/BOTTLE
Material
Steel
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • 100 terminals/bottle, 500 terminals/case
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Free hanging (in-line) mounting
  • High temperature
  • Made of durable steel for high temperature applications and has corrosion-resistant nickel plating
  • Non-insulated
  • Non-insulated, butted seam barrel with a beveled mouth offers easy insertion of wires
Sub_Brand
3M
Tab_Size
0.25 in W x 0.032 in THK
Terminal_Size
16 - 14 AWG
Type
Non-Insulated
Voltage Rating
600/1000
