3M 3M 5742


Description

Industry Description

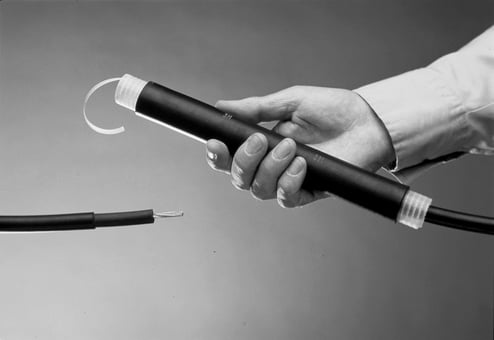

The 3M™ Cold Shrink Splicing Products are designed using the proprietary cold shrink delivery system developed by 3M. Products are supplied prestretched on a removable core for efficiency and ease of installation. 3M™ Cold Shrink Splices 5740 Series are used for single conductor, non-shielded 5/8 kV cables.Each kit is a cold shrink design and contains enough material to insulate three splices. Connectors are not included and must be ordered separately.Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Modified Industry Description

2 to 300 MCM Cold Shrink Splice Kits, Non Shielded Cable

AD Description

3M™ 5742 5740 1-Cable Splice Kit, 5/8 kVAC, 1 to 4/0 AWG, 250 kcmil, 300 kcmil Conductor, 12 in L Splice, EPDM

Vendor Description

3M™ 5740 Series Cold Shrink Non-Shielded Splice Kit is used for inline splicing of non-shielded, wet/dry solid dielectric power cables. It is suitable for use in direct-burial, weather-exposed and submerged locations. It is rated for 5/8 kV rated applications.

Specifications

Brand Name
3M
Cable_Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 4/0 AWG
Cable_Type
Non-Shielded
Color
Black
Conductor Size
1 to 4/0 AWG, 250 kcmil, 300 kcmil
Country of Origin
US
Label_Description
3M(TM) INLINE SPLICING KIT FOR NON-SHIELDED 5/8 KV CABLE 5742, 2 AWG-300 KCMIL, CABLE INSULATION O.D. 0.63-1.20, 1 PER CASE
Material
EPDM
Number_Of_Cables
1
Package_Quantity
1
Special_Features

  • 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 4/0 AWG conductor size
  • 1400 psi tensile strength
  • 3 splices/kit, 1/case
  • 365 V/mil dielectric strength
  • 4-1/2 in aluminum/copper length
  • 750% elongation
  • Cold shrink design no torches, heat guns or special tools required
  • Cold shrink insulator/jacket factory expanded EPDM insulator installs quickly and easily in the field
  • Designed for use with 10000, 11000 and 20000 series in-line compression connectors
  • Everything included to make 3 splices (except connectors)
  • Rubber mastic filler eliminates time consuming penciling of cable insulation
  • Specially formulated EPDM insulation, peroxide cured rubber provides for long term seal and resistance to UV, ozone, acids and alkalies
  • To splice single conductor non-shielded power cables

Sub_Brand
3M
Temperature_Rating
90 to 130
Type
1-Cable
Voltage Rating
5/8
