Edwards Signaling Edwards Signaling 598


Description

Industry Description

Transformer 120V AC prim 8 16 24V sec

Modified Industry Description

120V PRIMARY - 8/16/24V SECONDARY - TRANSFORMER

AD Description

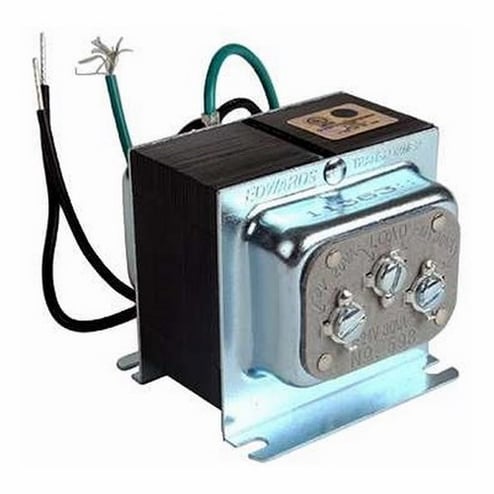

Edwards Signaling™ 598 590 Class 2 Low Voltage Signaling Transformer, 120 VAC Primary, 8/16/24 VAC Secondary, 50/60 Hz, 1 Phase

Vendor Description

Edwards 590 Series class 2 signaling transformers are easy to install, low voltage power sources for residential, commercial and industrial uses. Mounts in a standard 1/2 in (13 mm) knockout or surface mounts using the provided foot mounts. These transformers are suitable for mounting in both plastic and metal back boxes. May also be used with the 593 transformer plate for enclosed mounting in a standard 2-gang outlet box. The 591 transformer is suitable for standard doorbells and chimes in residential and commercial applications requiring 16 VAC. The Edwards 598, 598Y, 599 and 599Y transformers offer high power for long wire runs or for applications requiring greater power such as door openers.

Specifications

Application
Low voltage power sources for residential, commercial and industrial uses
Brand Name
Edwards Signaling
Connection
Pre-stripped Primary Side Pigtails
Country of Origin
CN
Frequency_Rating
50/60
Mounting
1/2 in. Knockout or Surface
Number_Of_Channels
120
Phase
1
Primary_Voltage
120
Secondary_Voltage
8/16/24
Special Features

  • 1/2 in knockout
  • 24 VAC at 30 VA, 16 VAC at 30 VA and 8 VAC 20 VA secondary voltage
  • Grounding wire provided
  • Non-regenerative thermal overload protection
  • Pre-stripped primary side pigtails
  • Screw terminal connections on secondary
Sub_Brand
Edwards
Type
Class 2 Low Voltage
VA_Rating
20/30/30
Vector_Group
Class 2
