Brad Harrison Brad Harrison 103002A01F060
Brad Harrison 103002A01F060
Kirby Risk #: 507878
UPC: 78172553642, 78678843203, 786788432034, 00781725536424, 00786788432034
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Brad Harrison
Description
Industry Description

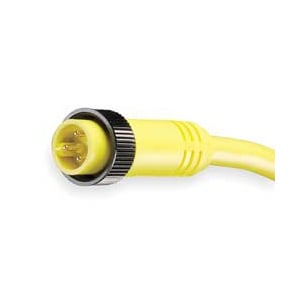

Mini-Change® A-Size Single-Ended Cordset, 3 Poles, Male (Straight) to Pigtail, 1.83m Length
Modified Industry Description
3P 10A MALE CORDSET
AD Description
Brad® Mini-Change® 103002A01F060 130006 Single Ended Cordset, 600 VAC/VDC, Straight Male x Pigtail End Connection, 6 ft L, 16 AWG Conductor, PVC
Vendor Description
Brad® Mini-Change® Connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick connect alternative to hard wiring. Mini-Change® Connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® Connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low resistance connection, the patented Quad Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti vibration feature prevents the coupler from loosening, even under extreme conditions.
Specifications
| Amperage Rating |
13
|
|---|---|
| Brand Name |
Brad Harrison
|
| Color |
Yellow
|
| Conductor Range |
16
|
| Conductor Size |
16
|
| Country of Origin |
MX
|
| Environmental_Conditions |
IP67
|
| Gender |
Male-Pigtail
|
| Material |
PVC
|
| Number Of Conductors |
3
|
| Package_Quantity |
1
|
| Poles |
3
|
| Size |
1.83m (6.0')
|
| Special Features |
A-Size (7/8 in - 16 UN-2B)
|
| Sub_Brand |
Mini-Change®
|
| Temperature_Rating |
-20°C to +105°C
|
| Type |
Single Ended Cord Set
|
| Voltage Rating |
600
|
