Federal Signal Federal Signal 131DST-120A

Federal Signal 131DST-120A
Kirby Risk #: 504002
UPC: 78297928555, 782979285557, 0782979285557, 00782979285557
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Federal Signal
Description
Industry Description

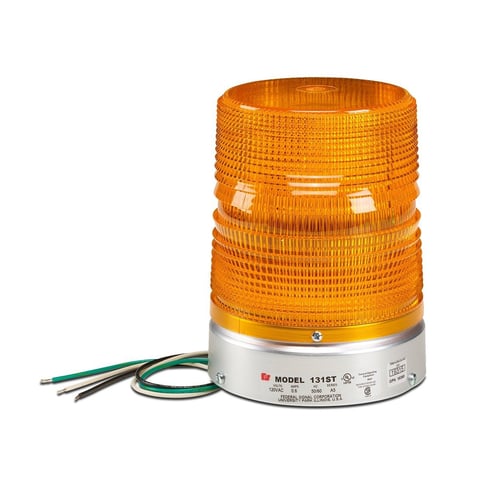

Starfire Strobe Warning Light Double Flash 120VAC Amber - Available in 12-24VDC, 120VAC and 240VAC. Five dome colors: Amber, Blue, Clear, Green and Red. 10,000 hour strobe tube. Single or double flash strobe. 1/2-inch NPT pipe mount. Indoor/outdoor use. Type 3, IP54 enclosure (Dome up orientation). UL and cUL Listed, CSA Certified.
Modified Industry Description
AMBER 120V STARFIRE DOUBLE FLASH/STROBE WARNING LIGHT
AD Description
Federal Signal STARFIRE® 131DST-120A Strobe Warning Light, 120 VAC, Strobe Tube Lamp, Amber, 1/2 in NPT Surface Mounting, Specifications Met: cUL Listed, CSA Certified, NEMA 3R/IP54
Vendor Description
Starfire strobe warning lights contain their own strobe power supply in the base of the light. The strobe flash tube is mounted in an eight-pin octal socket base. The fresnel dome stands up to impact and abuse and is available in amber, blue, clear, green and red. The base of the light is made of corrosion-resistant anodized aluminum. Each Starfire model comes with a standard 1/2 in NPT pipe mount. An optional surface mount can be ordered. Because of its convenient size and intense light output, the Starfire strobes can be used for multiple applications. Excellent for in-plant use, the models 131ST/DST warn of hazardous conditions, mark dangerous areas (either permanently or temporarily) and mount on lift trucks, cranes and other moving devices. These powerful strobes can be used on emergency, utility, maintenance or other vehicles requiring emergency warning.
Specifications
Amperage Rating |
0.6
|
---|---|
Application |
Commercial Trucking
|
Average_Life |
10000
|
Brand Name |
Federal Signal
|
Candle_Power |
Peak 1,000,000 ECP 1,200CND
|
Color |
Amber
|
Country of Origin |
US
|
Diameter |
5.7
|
Environmental_Conditions |
-31 to 150 DEG F
|
Fixture_Type |
Corner Bracket and Wall Bracket
|
Flashes_Per_Minute |
80DFLPM
|
Label_Description |
STARFIRE DOUBLE STROBE LIGHT, UL AND CUL, 120VAC, AMBER
|
Lamp_Type |
Strobe Tube
|
Material |
Corrosion-Resistant Anodized Aluminum Base
|
Model |
131DST
|
Mounting |
1/2 Inch NPT Pipe
|
NEMA_Rating |
NEMA 3R/IP54
|
Shape |
Cylindrical
|
Size |
8.5 H x 5.7 WInches
|
Special Features |
|
Standard |
UL and cUL Listed and CSA Certified
|
Style |
Strobe
|
Sub_Brand |
Federal Signal
|
Type |
Flashing/Strobe
|
Voltage Rating |
120
|
