Federal Signal Federal Signal 121S-120R


Description

Modified Industry Description

AMBER 120V VITALITE ROTATING WARNING LIGHT

AD Description

Federal Signal Vitalite® 121S-120R Light Duty Rotating Warning Light, 120 VAC, Incandescent Lamp, 5.13 in Dia, Surface Mount, Red

Vendor Description

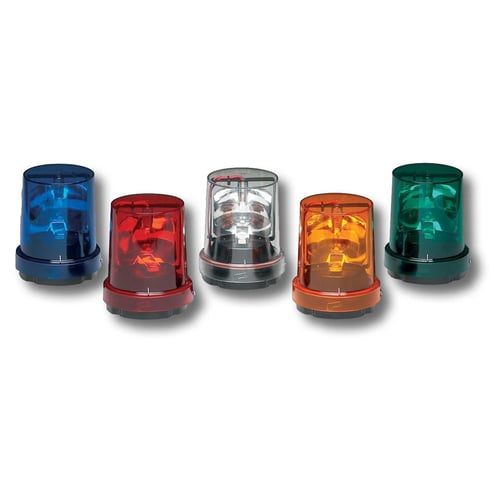

Federal signal model 121S is a compact, rotating warning light designed for in-plant use. It features a parabolic reflector which rotates around an incandescent lamp, providing 60 flashes per minute in all directions. The 121S Vitalite® is available in five dome colors: amber, blue, clear, green and red. Federal signal 121S comes ready to mount on a 1/2-inch NPT pipe or surface mount. Optional brackets simplify installation on walls or in corners. The enclosure is also rated type 4X for a watertight and dusttight seal. The lamp projects an intense, fixed beam onto a parabolic reflector which rotates 360, producing 60 flashes per minute. The 121 features a twist and lock dome which allows for fast and easy access to inspect and change the lamp. This light is particularly useful as a signaling or warning device in high ambient noise areas where it can supplement audible signaling devices. It is also effective alerting for hazardous conditions or dangerous areas. Federal signal Vitalite® is an economical rotating warning light for emergency warning or status indication in noisy areas.

Specifications

Amperage Rating
0.36
Application
In-plant use
Average_Life
3000
Brand Name
Federal Signal
Candle_Power
2,100CND
Color
Red
Country of Origin
US
Diameter
5.13
Environmental_Conditions
-31 to 150 DEG F
Fixture_Type
Corner or wall
Flashes_Per_Minute
60FLPM
Lamp_Type
Incandescent
Material
Zinc/Plastic
Model
121S-120R
Mounting
Pipe and surface mount
NEMA_Rating
NEMA 4X/IP66
Power_Sources
120VAC
Shape
Cylindrical
Size
6.26H x 5.13DInches
Special Features

  • Integrated 1/2 in NPT pipe/surface mount
  • NEMA 4X, IP66 enclosure

Standard
UL and cUL Listed, CSA Certified
Style
Rotating
Sub_Brand
Federal Signal
Type
Light Duty
Voltage Rating
120
Wattage
40
