Federal Signal Federal Signal LSS-120

Modified Industry Description

120 V AC LITESTAK SOUND MODULE

AD Description

Federal Signal Litestak® LSS-120 Sound Module, 120 VAC, 70 mA, 59 to 69 dB, 18 Tones, Surface Mount, UL Listed

Vendor Description

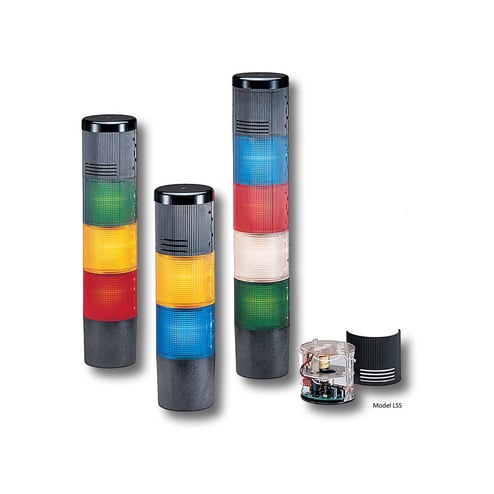

The Federal signal Litestak® sound module is a micro-processor based audible signaling device. Model LSS can be combined with the Federal signal Litestak® light modules to create an audible/visual signal. The sound module contains a micro-processor based tone generator and an integrated speaker which produces one of 18 tones. Select tones by setting five, 2-position dip-switches. The sound module can work as a stand-alone audible signal when plugged into the model LSBS low-profile surface mount base or model LSB pipe mount base. The model LSS can be combined with any Litestak® light module configuration of up to four colors. Controlling the sound module is done via the wires normally used for the clear light module. The sound module always occupies the top module position in a Litestak® tower. All Litestak® models should be mounted base down.
