Bussmann Bussmann 16332-1


Description

Industry Description

310AMP 600V 1PL PWR DISTRN BLCK

Modified Industry Description

TERMINAL BLOCK 1P 310A 600V

AD Description

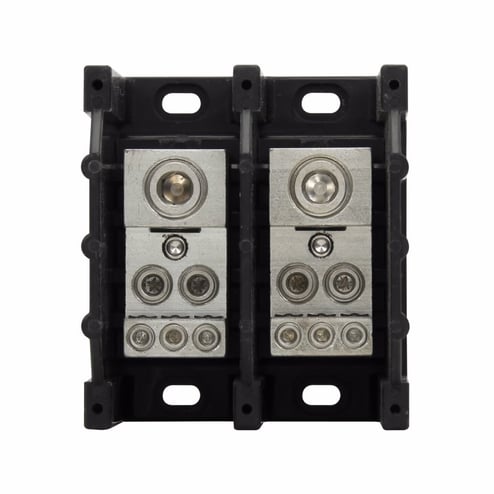

Edison Magnum® 16332-1 Barrier Power Terminal Block, 600 VAC/VDC, 310 A, 1 Pole, 6 AWG to 350 kcmil, 8 to 1/0 AWG Wire, Thermoplastic

Vendor Description

Edison series UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations to provide greater flexibility in panel wiring and wire management.

Specifications

Amperage Rating
310
Application
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name
Bussmann
Color
Black
Country of Origin
MX
Finish
Tin Plated
Material
Thermoplastic
Number_Of_Poles
1
Size
1.98 In Length X 4.00 In Width X 3.32 In Height
Special Features

  • (1) screw primary, (5) quick connect secondary
  • 6 AWG to 350 kcmil copper/aluminum line, (3) 14 to 2 AWG copper, 8 to 2 AWG aluminum, (2) 14 to 1/0 AWG copper, 8 to 1/0 AWG aluminum load connection
  • 6 AWG to 350 kcmil copper/aluminum line, (3) 14 to 2 AWG copper, 8 to 2 AWG aluminum/(2)14 to 1/0 AWG copper, 8 to 1/0 AWG aluminum load wire
  • Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
  • Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
  • Molded thermoplastic base, tin plated aluminum connector
  • Rated for dual wire port application to increase the possible number of lineside and loadside connections
  • SMD/SMT style mounting
Standard
UL, CSA
Sub_Brand
Cooper Bussmann
Type
Barrier
Voltage Rating
600
