Panduit Panduit FSD73-8-D


Description

Industry Description

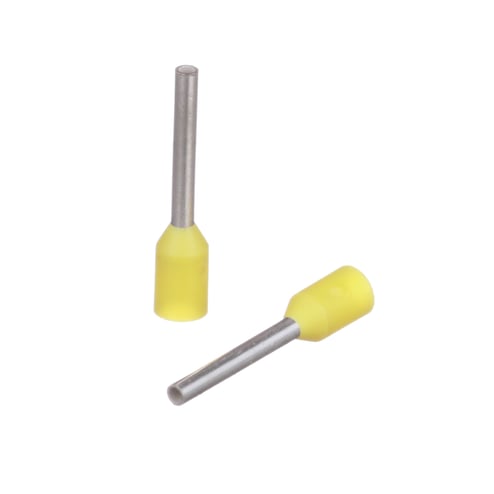

The single wire DIN end sleeve insulated ferrule in yellow has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #24 (0.25 mm²) wire ferrules and supports a maximum wire insulated diameter of 0.07 (2.0 mm). The insulated ferrule is 0.49 (12.5 mm) long and has a wire strip length of 0.469 (11.9 mm). It comes in standard packages of 500.

Modified Industry Description

24 AWG YELLOW INSULATED FERRULES, SINGLE WIRE DIN END SLEEVE

AD Description

Panduit® Pan-Term® FSD73-8-D Type FSD DIN End Sleeve Insulated Single Wire Ferrule With Sleeve, 24 AWG Conductor, 0.49 in L, Copper, Yellow

Vendor Description

Panduit® Pan-Term® ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

Specifications

Brand Name
Panduit
Color
Yellow
Connection
Crimp
Conductor Size
24
Country of Origin
DEU
Finish
Tin Plated
Insulation
Polypropylene
Material
Copper
Mounting
15/32
Package_Quantity
500
Special Features

  • Designed with a seamless barrel to contain loose wire strands for superior terminations
  • Funnel entry for faster insertion and lower installed cost
  • Meets DIN standards for twin wire containment
  • Polypropylene insulation housing
Standard
DIN 46228 Part 1, UL 486F Listed - No, UL 508A Certified
Sub_Brand
Panduit
Type
Type FSD DIN End Sleeve Insulated Single Wire
