Appleton Appleton GULB50


Description

Industry Description

UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: (2) 1/2 IN GULB Hub, Cubic Capacity: 19 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 4.28 IN, Width: 4.28 IN, Depth: 2-1/4 IN, Finish: T

Modified Industry Description

CONDUIT OUTLET BOX

AD Description

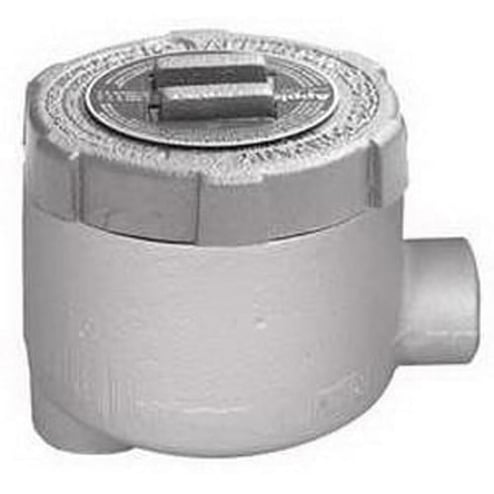

Appleton® Unilets™ GULB50 Type LB Dust-Ignitionproof Conduit Outlet Box, 1/2 in, 3.38 in Cover Opening, 19 cu-in, Tri-Coated

Specifications

Application
For Use With Threaded Metal Conduit
Brand Name
Appleton
Cable_Entry
(2) 1/2 IN GULB Hub
Color
Gray
Country of Origin
MX
Cubic_Capacity
19
Finish
Tri-Coated
Knockouts
False
Material
Malleable Iron
Number_Of_Outlets
2
Size
1/2
Special Features

  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • Complies with a wide range of classifi ed area requirements
  • Connect conduit lengths and change direction of conduit runs
  • Corrosion resistant - ideal for indoor and outdoor installations
  • Externally threaded body with internally threaded cover
  • General purpose wiring
  • Malleable iron bodies have high tensile strength and ductility
  • Provide access for maintenance
  • Provides great resistance to corrosion, impact and shock
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Triple coat of zinc electroplate, chromate and epoxy powder coated finish
Standard
UL 886, UL File Number E10444 , CSA C22.2 No. 25, C22.2 No. 30, CSA 025875 Certi?ed; Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
Sub_Brand
Appleton
Type
Type LB Dust-Ignitionproof
