Panduit Panduit RJBX3510IW
Panduit RJBX3510IW
Kirby Risk #: 501292
UPC: 07498335402, 074983354023, 50074983354028, 00074983354023
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

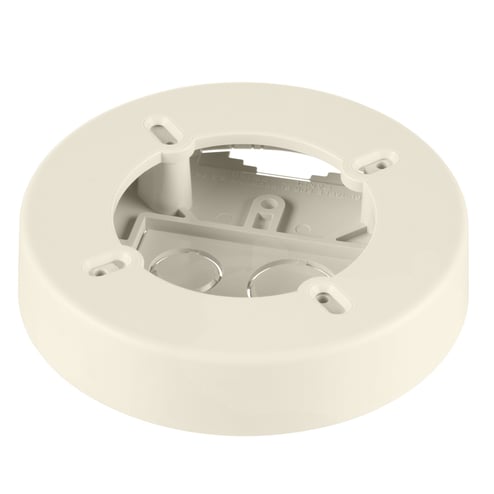

Single gang two-piece screw together round outlet box. Box accepts UL/CSA devices not to exceed 10lbs. (5lbs. per CSA). For use with Pan-Way® LD profile raceway. Dia. = 5.48"D x 1.14"H (139.2mm x 29.0mm). Breakouts for 3/4" or 1" diameter conduit, International White.
Modified Industry Description
Single Gang Power Rated 2-piece
AD Description
Panduit® Pan-Way® RJBX3510IW 1-Gang Low Voltage Power Rated Round Outlet Box, 5.51 in L x 5.51 in W x 1.14 in H, PVC, Off-White
Specifications
| Application |
NA
|
|---|---|
| Brand Name |
Panduit
|
| Color |
International White
|
| Country of Origin |
USA
|
| Cover_Type |
NA
|
| Material |
PVC
|
| Special Features |
|
| Standard |
RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Type |
1-Gang Low Voltage Power Rated
|
| Width_2 |
10.3000
|
| Width_3 |
10.3000
|
