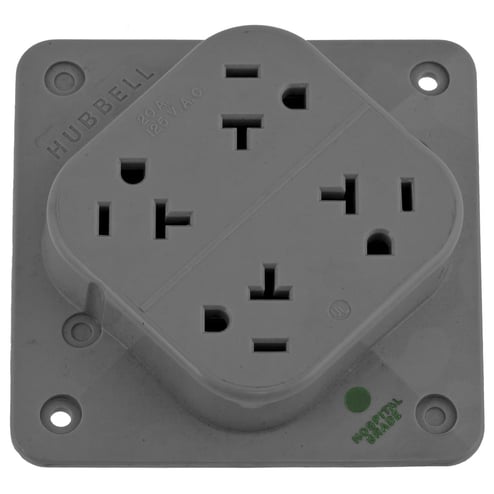

Hubbell Hubbell HBL420HGY


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles, 4-Plex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray,Single Pack

Modified Industry Description

20A 125V GRAY HOSP 4-PLEX NEMA

AD Description

Wiring Device-Kellems 4-PLEX® HBL420HGY 4-in-1 Grounding Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray

Specifications

Amperage Rating
20
Application
4-Plex Hospital Grade
Brand Name
Hubbell
Color
Gray
Connection
Back Wired Screw Terminals
Conductor Size
#14 AWG to #12 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Hospital
Material
Polycarbonate
Mounting
Screw Mount
NEMA_Rating
NEMA 5-20R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special_Features

  • 0.032 in brass power contact
  • 14 to 12 AWG copper stranded or solid conductor only
  • 8 to 32 brass, multiple drive
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Easily accessible break-off tabs for split wiring
  • Heavy duty spec grade
  • High impact resistant polycarbonate construction
  • Polycarbonate base material
  • Quad receptacle style
  • Three conductors energize all four outlets
  • Triple wipe contacts
  • Withstands 2000 VAC minimum dielectric voltage

Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Standard
Voltage Rating
125
Wattage
2,500
