Hubbell Hubbell PL1EE


Description

Industry Description

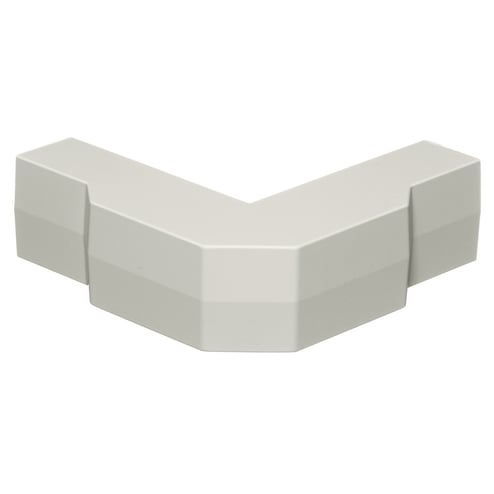

Hubbell Wiring Device Kellems, Non-Metallic Raceway, Latching LANTRAK,External Elbow

Modified Industry Description

Non Metallic Raceway External Elbow, Latching LANTRAK

AD Description

PREMISE WIRING PL1EE External Elbow Cover, 1-1/4 in Bend Radius, 1.03 sq-in, PVC

Vendor Description

POLYTRAK® non-metallic surface raceway is a complete system that includes raceway fittings, boxes and devices. Sizes range from 1-channel PremiseTrak® to three channel. Super BaseTrak® for all types of surface raceway requirements. 1 and 2-channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements.

Specifications

Application
PL1 Series
Brand Name
Hubbell
Color
Off-White
Construction
Extruded
Country of Origin
PR
Finish
Office White
Knockouts
None
Material
PVC
Nominal_Cross_Section
1.03 Square Inches
Non_Hazardous_Location
Non-Hazardous
Special Features

  • -25.6 to 158 deg C temperature range
  • 1.03 sq-in nominal cross section
  • 2-gang divided box available for power, data, voice, audio and video applications
  • 300 lb crush resistance
  • 5 ft-lb impact resistance
  • Boxes have three cut always that can be utilized with WallTrak®, LANTrak® and PremiseTrak® (latching) systems
  • Boxes have three cut-aways that can be utilized with WallTrak®, LANTrak® and PremiseTrak® (latching) systems
  • Boxes utilize hubbell KP plates or iSTATION™ modules and bezels
  • Boxes utilize Hubbell® KP plates or iSTATION™ modules and bezels
  • Eliminates need to order three separate boxes and reducing inventory requirements
  • Extruded construction
  • Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel
  • Without knockout
Standard
UL 5A
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Non-Metallic
Width_2
18.6250
Width_3
8.8050
Width_4
8.8050
