Hubbell Hubbell HBL420
Hubbell HBL420
Kirby Risk #: 499241
UPC: 78358501409, 783585014098, 00783585014098
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

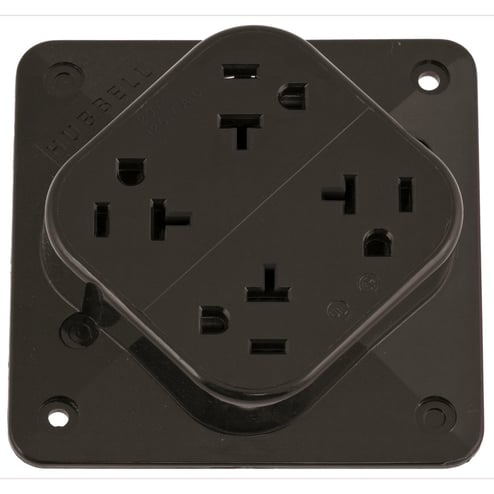

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles, 4-Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack
Modified Industry Description
20A 125V BROWN 4-PLEX RCPT NEMA
AD Description
Wiring Device-Kellems 4-PLEX® HBL420 4-in-1 Grounding Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial
|
| Brand Name |
Hubbell
|
| Color |
Brown
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
4-PLEX
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
