Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 20A 277V AC, 2-Pole 3-Wire Grounding, L7-20R, ScrewTerminal, White

Modified Industry Description

20A 277V RECPT WHITE

AD Description

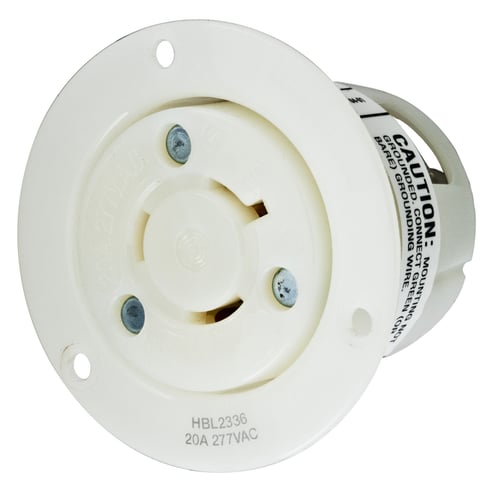

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2336 Flanged Grounding Locking Receptacle, 277 VAC, 20 A, 2 Poles, 3 Wires, White

Specifications

Amperage Rating
20
Application
Insulgrip
Brand Name
Hubbell
Color
White
Connection
Screw Terminal
Conductor Size
#14 AWG to #8 AWG
Country of Origin
PR
Dielectric_Strength
Withstands 2,000V minimum
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Nylon
Mounting
Screw Mount
NEMA_Rating
NEMA L7-20R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • 0.031 in brass ground contact
  • 0.8 in nickel plated steel terminal clamp
  • 20 A 12 AWG terminal accommodation
  • Back wired terminations for ease of installation
  • Brass contact spring and spring binding plate
  • Certified for current interrupting at full rated current
  • Clear polycarbonate terminal retainer material
  • HB or better per UL 94 or CSA 22.2 no. 0.6 flammability
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Molded in or stamped on ratings
  • Natural white nylon flanged casing material
  • Nickel-plated brass round head mounting screw material
  • NO 10 to 32 brass (green finish) multi-drive ground screw
  • NO 10 to 32 brass (white finish on neutral screw when used) terminal screw
  • Permanently ink marked on product catalog number
  • Standard style
  • Terminals identified in accordance with UL498 (x, y, z, white, green)
  • Withstand 2000 VAC minimum dielectric voltage
  • Zinc plated steel multi drive body holding screw, natural white nylon body contact carrier
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Flanged Grounding
Voltage Rating
277
Wattage
5,540
